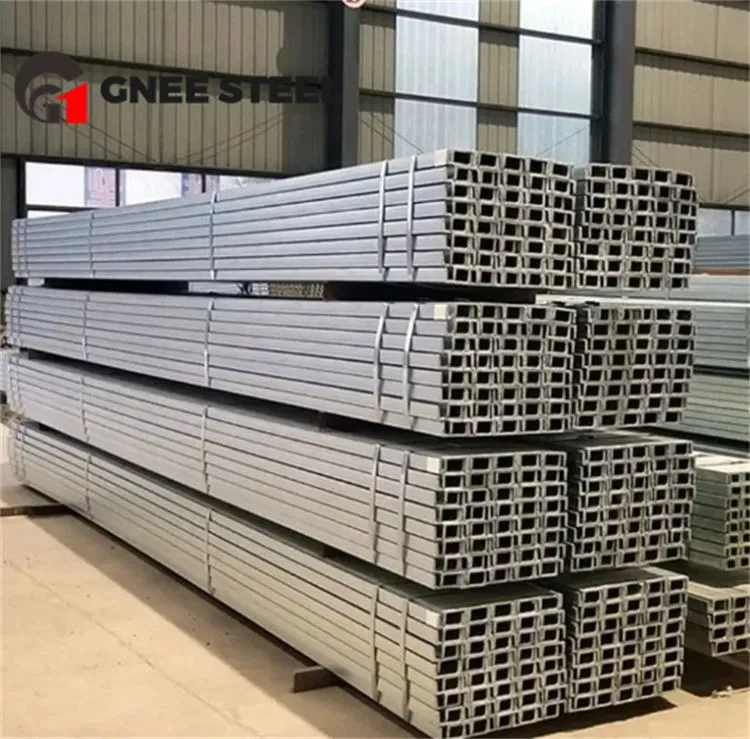

A588GRA C SCRED STEEL
ASTM A588GGRA C channel bar yog HSLA steel siv nyob rau hauv kev tsim cov khoom channel (c thiab u cov duab). Vim yog cov khoom me me ntawm alloying cov khoom tooj liab, chromium thiab npib tsib xyoos nyob rau hauv A588GRA u puab cov hlau channel, A588GGRA muaj kev ua tau zoo dua.
Ib qho ntxiv, tus tooj liab lub ntsiab hauv A588GGra u seem steel yog siv tau ntau yam cuab yeej siv hlau yog qhov siab- Cov khoom siv dav dav rau cov nkoj thiab tsheb.
Cov ntawv thov ntawm A588GRA cov ntaub ntawv channel: Vaj tse, tsheb, cov cuab yeej cuab yeej, chaw ua haujlwm ntev, lub Hoobkas cob qhia thiab lwm yam khoom siv hauv qab.
C Bar Hlau TshuajMuaj pes tsawg
| Qib hlau | Carbon, max,% | Manganese,% | Phosphorus, max,% | Sulphur, Max,% | Silicon,% | Npib tsib xee, max,% | Chromium,% | Tooj liab | Vanadium,% |
|---|---|---|---|---|---|---|---|---|---|
| A588 Qib A | 0.19 | 0.80 - 1.25 | 0.04 | 0.05 | 0.30 - 0.65 | 0.40 | 0.40 - 0.65 | 0.25 - 0.40 | 0.02 - 0.10 |
Hlau Channel tshooj neeg kho tshuab
| Qib hlau | Yeej | Lub zog tensile, ksi [MPA] | Youa taw, min, KSI [MPA] | Elongation nyob rau hauv 8 in. [200 hli], min,% | Elongation nyob rau hauv 2 hauv. [50 hli], min,% |
|---|---|---|---|---|---|
| A588 Qib A | Hlau Raws | 70 [485] | 50 [345] | 18 | 21 |
ASTM A588 hlau U channel ntau thiab tsawg-} upn
| Yam | Qhov tob (MM) | Flenge Dav (hli) | Web tuab (hli) | Flange tuab (hli) | Nyhav (kg / m) |
|---|---|---|---|---|---|
| Upn80 | 80 | 45 | 6 | 8 | 8.64 |
| UPN100 | 100 | 50 | 6 | 8.5 | 10.6 |
| UPN120 | 120 | 55 | 7 | 9 | 13.4 |
| UPN140 | 140 | 60 | 7 | 10 | 16 |
| UPN160 | 160 | 65 | 7.5 | 10.5 | 18.8 |
| UPN180 | 180 | 70 | 8 | 11 | 22 |
| Upn200 | 200 | 75 | 8.5 | 11.5 | 25.3 |
ASTM A588 U puab cov hlau channel ntau-}}
| Yam | Qhov tob (MM) | Flenge Dav (hli) | Web tuab (hli) | Flange tuab (hli) | Nyhav (kg / m) |
|---|---|---|---|---|---|
| Ute80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
| UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
| UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
| UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
| UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
| UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
| UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |
Txheej txheem hlau channel cov khoom siv
Gnee Pawg Pab Pawg Duab
Gnee Pab Pawg Neeg Siv Khoom Mus Xyuas
Gnee Group Exhibition
Peb muaj zoo heev tom qab {{0} Kev Pabcuam Muag Khoom. Yog tias koj muaj lus nug txog A588GRA C sceel, koj tuaj yeem tiv tauj peb thiab peb yuav tiv tauj peb thiab peb teb koj hauv ob teev.
Cim npe nrov: A588GRA C zoo li cov hlau, Tuam Tshoj A588Gra C Sceel Manufacturers, lwm tus neeg, Hoobkas
