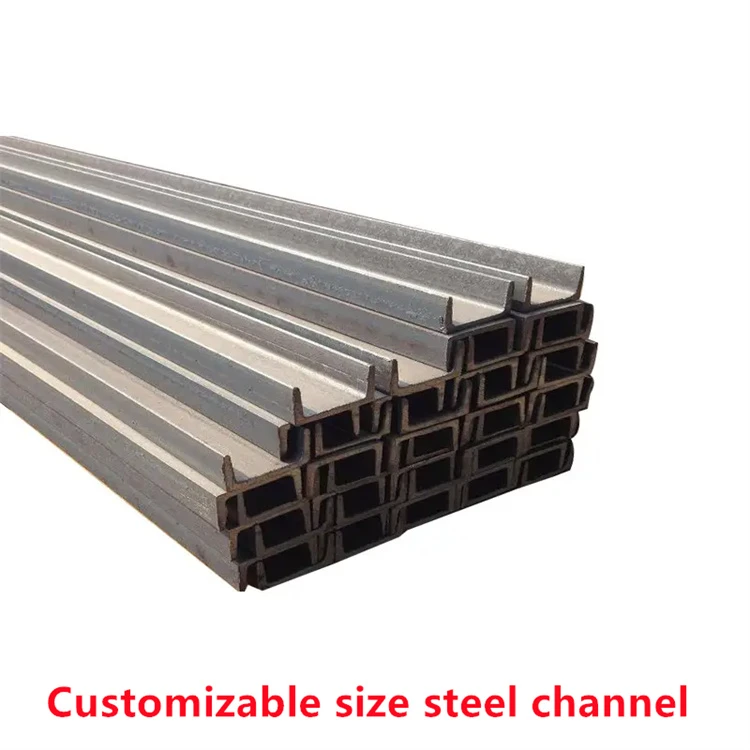

SS540 Carbon Steel Channel
JIS G3192-2008 tus qauv npog ntau yam qauv ntawm cov hlau kub dov, nrog rau cov hlau, cov ces kaum, H-beams, thiab lwm yam. JIS G3192-2008 tus qauv npog ntau yam qauv ntawm cov hlau kub dov. Ntawm lawv, cov qauv ntawm cov hlau channel muaj xws li SS400, SS490, SS540 thiab lwm yam.
SS540 hlau channel muaj siab yield zog thiab tensile zog. Nws lub zog tawm los yog feem ntau ntawm 390MPa thiab 540MPa, thiab nws lub zog tensile yog nruab nrab ntawm 540MPa thiab 700MPa. Tsis tas li ntawd, nws muaj qhov zoo elongation thiab cuam tshuam toughness, ua rau nws haum rau ob qho tib si txias thiab kub ua haujlwm.
SS540 steel hlau channel tshuaj muaj pes tsawg leeg
| Qib | C Tsawg dua los yog sib npaug | Si | Mn Tsawg dua lossis sib npaug | P Tsawg dua lossis sib npaug | S Tsawg dua los yog sib npaug |
| SIB 540 | 0.30 | 0.40 | 1.60 | 0.040 | 0.040 |
SS540 channel beam txhua yam khoom
| rade | Tensile Test (transverse) | ||||||
| Upper yield zog MPa | Tensile zog MPa | Elongation% | 180℃Khoov xeem b Ntau dua lossis sib npaug rau 35mm Inner inch | ||||
| Nominal thickness mm | L=50 b=25 | L=200 b=40 | |||||
| Nominal thickness mm | |||||||
| Tsawg dua los yog sib npaug li 16 | ＞16 | Tsawg dua los yog sib npaug li 5 | ＞5~16 | ＞16 | |||
| SIB 540 | Ntau dua lossis sib npaug li 400 | Ntau dua lossis sib npaug rau 390 | Ntau dua lossis sib npaug li 540 | Ntau dua lossis sib npaug li 16 | Ntau dua lossis sib npaug li 13 | Ntau dua lossis sib npaug li 17 | 4a |
SS540 parallel flange channel muaj qhov ntau thiab tsawg
| Loj | Qhov tob | Dav | Thickness | Ntev | Qhov hnyav (lbs/ft) |
| 3/4" x 3/8" x 1/8" | 0.75" | 0.375" | 1/8" | 240.00" | 0.560 |
| 1" x 1/2" x 1/8" | 1" | 0.5" | 1/8" | 240.00" | 0.840 |
| 1-1/4" x 1/2" x 1/8" | 1.25" | 0.5" | 1/8" | 240.00" | 0.990 |
| 1-1/2" x 1/2" x 1/8" | 1.5" | 0.5" | 1/8" | 240.00" | 1.119 |
| 1-1/2" x 9/16" x 3/16" | 1.5" | 0.563" | 3/16" | 240.00" | 1.440 |
| 1-1/2" x 3/4" x 1/8" | 1.5" | 0.75" | 1/8" | 240.00" | 1.170 |
| 2" x 1/2" x 1/8" | 2" | 0.5" | 1/8" | 240.00" | 1.430 |
| 2" x 9/16" x 3/16" | 2" | 0.563" | 3/16" | 240.00" | 1.860 |
| 2" x 5/8" x 1/4" | 2" | 0.625" | 1/4" | 240.00" | 2.280 |
| 2" x 1" x 1/8" | 2" | 1" | 1/8" | 240.00" | 1.590 |
| 2" x 1" x 3/16" | 2" | 1" | 3/16" | 240.00" | 2.319 |
| 2-1/2" x 5/8" x 3/16" | 2.5" | 0.625" | 3/16" | 240.00" | 2.270 |
SS540 tus qauv channel khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
GNEE Group koom nrog kev nthuav qhia txawv teb chaws steel
Peb muaj cov neeg ua haujlwm pabcuam hauv online. Yog tias koj muaj lus nug txog SS540 Carbon Steel Channel, thov xa peb cov lus nug thiab peb yuav teb rau koj hauv ib hnub ua haujlwm.
