Shipbuilding daim hlau
Shipbuilding steel phaj yog hais txog cov pa roj carbon thiab alloy steel phaj siv nyob rau hauv offshore thiab marine contructions, ntau qib yog A, B, D, E, AH32/36/40, DH32/36/40, thiab EH32/36/40 uas ranges ntawm txawv zog.
Cov phaj feem ntau yog siv los tsim cov nkoj hulls, bulkheads, sab saum toj decks thiab hatch npog rau tankers, bulk carriers, thawv ships thiab LNG carriers.
nkoj phaj mTC
Hlau Phaj Rau Shipbuilding
Steel shipbuilding daim hlau yog siv nyob rau hauv lub alarm qauv ntawm cruise ships. Qhov tshwj xeeb nyias tab sis dav daim hlau yog siv rau cov ntawv thov kom muab cov khoom zoo tshaj plaws xws li flatness thiab weldability. Nyob rau hauv sib piv, siab -lub zog, thermomechanically dov shipbuilding daim hlau yog siv nyob rau hauv offshore daim ntaub ntawv. Lawv yog siv rau platform superstructures lossis rau cov nkoj tshwj xeeb hauv kev lag luam roj thiab roj.
Shipbuilding steel yog hais txog steel feem ntau siv rau kev tsim nkoj. Qhov tseeb, shipbuilding yog thaj chaw uas cov hlau phaj feem ntau siv. Shipbuilding steel yuav tsum muaj ntau yam ntawm cov yam ntxwv ntawm lub zog, qhov ntev, qhov chaw, daim ntawv thiab kev cuam tshuam toughness (sawv cev raws li qib A txog F) nyob ntawm daim ntawv thov. Tag nrho peb cov hlau phaj, suav nrog cov hlau tsis tu ncua thiab siab tensile steel tau pom zoo los ntawm kev faib cov koom haum ntawm ntau lub teb chaws nrog rau TMCP- tsim cov hlau tensile siab uas tso cai rau cov khoom siv hluav taws xob zoo heev - gas arc vuam, yog siv rau kev tsim khoom nkoj. [Classification Societies] Korean Register of Shipping (KR), ClassNK, ABS, LR, DNV GL, RINA, BV, CCS, RS.
Shipbuiding Standards los ntawm txawv teb chaws
Shipbuilding steel daim hlau yog tsim nyob rau hauv kev tso cai ntawm ntau lawm txoj kev ntawm kev faib pawg neeg nyob rau hauv txawv teb chaws yog hais txog offshore thiab marine steels.
- ABS (American Bureau of Shipping)
- BV (Bureau Veritas)
- CCS (China Classification Society)
- DNV (Det Norske Veritas)
- GL (Germanischer Lloyd)
- HR (Hellenic Register of Shipping)
- KR (Korean Register of Shipping)
- LR (Lloyd's Register of Shipping)
- NK (Nippon Kaiji Kyokai)
- RINA (Registro Italiano Navale)
- RS (India Register of Shipping)
ABS txheem shipbuilding steel phaj qib
|
ABS Steel Phaj Qib |
||||
|
General Lub Zog |
AB/A |
AB/B |
AB/D |
AB/E |
|
Siab zog |
AB 32 |
AB/DH 32 |
AB/EH 32 |
AB/FH32 |
|
AB 36 |
AB/DH 36 |
AB/EH 36 |
AB/FH36 |
|
|
AB 40 |
AB/DH 40 |
AB/EH 40 |
AB/FH 40 |
|
|
Ntxiv dag zog |
AB/AQ 43 |
AB/DQ 43 |
AB/EQ 43 |
AB/FQ 43 |
|
AB/AQ 47 |
AB/DQ 47 |
AB/EQ 47 |
AB/FQ 47 |
|
|
AB/AQ 51 |
AB/DQ51 |
AB/EQ 51 |
AB/FQ51 |
|
|
AB/AQ 56 |
AB/DQ 56 |
AB/EQ 56 |
AB/FQ56 |
|
|
AB/AQ 63 |
AB/DQ 63 |
AB/EQ 63 |
AB/FQ 63 |
|
|
AB/AQ 70 |
AB/DQ 70 |
AB/EQ 70 |
AB/FQ 70 |
|
|
|
CCS tus qauv steel phaj rau qib shipbuilding
|
CCS Steel Phaj Qib |
||||
|
General Lub Zog |
CCS/A |
CCS/B |
CCS/D |
CCS/E |
|
Siab zog |
CCS/A32 |
CCS/D32 |
CCS/E32 |
CCS/F32 |
|
CCS/A36 |
CCS/D36 |
CCS/E36 |
CCS/F36 |
|
|
CCS/A40 |
CCS/D40 |
CCS/E40 |
CCS/F40 |
|
|
Ntxiv dag zog |
CCS/A420 |
CCS/D420 |
CCS/E420 |
CCS/F420 |
|
CCS/A460 |
CCS/D460 |
CCS/E460 |
CCS/F460 |
|
|
CCS/A500 |
CCS/D500 |
CCS/E500 |
CCS/F500 |
|
|
CCS/A550 |
CCS/D550 |
CCS/E550 |
CCS/F550 |
|
|
CCS/A620 |
CCS/D620 |
CCS/E620 |
CCS/F620 |
|
|
CCS/A690 |
CCS/D690 |
CCS/E690 |
CCS/F690 |
|
A131 txheem marine steel phaj qib
|
A131 Steel Phaj Qib |
||||
|
General Lub Zog |
Qib A |
Qib B |
Qib D |
Qib E |
|
Siab zog |
A131 AWS 32 |
A131 DH32 |
A131 EH32 |
A131 FH32 |
|
A131 AWS 36 |
A131 DH36 |
A131 EH36 |
A131 FH36 |
|
|
A131 AWS 40 |
A131 DH40 |
A131 EH40 |
A131 FH40 |
|
LR txheem nkoj tsim steel phaj qib
|
LR Steel Phaj Qib Supplier |
||||
|
General Lub Zog |
LR/A |
LR/B |
LR/D |
LR/E |
|
Siab zog |
LR/AH32 |
LR/DH32 |
LR/EH32 |
LR/FH32 |
|
LR/AH36 |
LR/DH36 |
LR/EH36 |
LR/FH36 |
|
|
LR/AH40 |
LR/DH40 |
LR/EH40 |
LR/FH40 |
|
|
Ntxiv dag zog |
LR/AH42 |
LR/DH42 |
LR/EH42 |
LR/FH42 |
|
LR/AH46 |
LR/DH46 |
LR/EH46 |
LR/FH46 |
|
|
LR/AH50 |
LR/DH50 |
LR/EH50 |
LR/FH50 |
|
|
LR/AH55 |
LR/DH55 |
LR/EH55 |
LR/FH55 |
|
|
LR/AH62 |
LR/DH62 |
LR/EH62 |
LR/FH62 |
|
|
LR/AH69 |
LR/DH69 |
LR/EH69 |
LR/FH69 |
|
DNV txheem nkoj steel phaj qib
|
DNV Steel Phaj Qib Supplier |
||||
|
General Lub Zog |
NV A |
NV B |
NV D |
NV E |
|
Siab zog |
NV A32 |
NV D32 |
NV E 32 |
NV F32 |
|
NV A36 |
NV D36 |
NV E 36 |
NV F36 |
|
|
NV A40 |
NV D40 |
NV E40 |
NV F40 |
|
|
Ntxiv dag zog |
NV A420 |
NV D420 |
NV E420 |
NV F420 |
|
NV A460 |
NV D460 |
NV E460 |
NV F460 |
|
|
NV A500 |
NV D500 |
NV E500 |
NV F500 |
|
|
NV A550 |
NV D550 |
NV E550 |
NV F550 |
|
|
NV A620 |
NV D620 |
NV E620 |
NV F620 |
|
|
NV A690 |
NV D690 |
NV E690 |
NV F690 |
|
BV txheem marine ntawv qib
|
BV Steel Phaj Qib |
||||
|
General Lub Zog |
BV/A |
BV/B |
BV/D |
BV/E |
|
Siab zog |
BV/AH32 |
BV/DH32 |
BV/EH32 |
BV/FH32 |
|
BV/AH36 |
BV/DH36 |
BV/EH36 |
BV/FH36 |
|
|
BV/AH40 |
BV/DH40 |
BV/EH40 |
BV/FH40 |
|
|
Ntxiv dag zog |
BV/A420 |
BV/D420 |
BV/E420 |
BV/F420 |
|
BV/A460 |
BV/D460 |
BV/E460 |
BV/F460 |
|
|
BV/A500 |
BV/D500 |
BV/E500 |
BV/F500 |
|
|
BV/A550 |
BV/D550 |
BV/E550 |
BV/F550 |
|
|
BV/A620 |
BV/D620 |
BV/E620 |
BV/F620 |
|
|
BV/A690 |
BV/D690 |
BV/E690 |
BV/F690 |
|
GL txheem marine steel ntawv qib
|
GL Steel Phaj Qib |
||||
|
General Lub Zog |
GL-A |
GL-B |
GL-D |
GL-E |
|
Siab zog |
GL-A32 |
GL-D32 |
GL-E32 |
GL-F32 |
|
GL-A36 |
GL-D36 |
GL-E36 |
GL-F36 |
|
|
GL -A40 |
GL -D40 |
GL -E40 |
GL-F40 |
|
|
Ntxiv dag zog |
GL -A420 |
GL -D420 |
GL -E420 |
GL -F420 |
|
GL -A460 |
GL -D460 |
GL -E460 |
GL -F460 |
|
|
GL -A500 |
GL -D500 |
GL -E500 |
GL -F500 |
|
|
GL -A550 |
GL -D550 |
GL -E550 |
GL -F550 |
|
|
GL -A620 |
GL -D620 |
GL -E620 |
GL-F620 |
|
|
GL -A690 |
GL -D690 |
GL -E690 |
GL -F690 |
|
NK txheem marine qib steel phaj qib
|
NK Steel Phaj Qib |
||||
|
General Lub Zog |
K A |
K B |
K D |
K E |
|
Siab zog |
K A32 |
K D32 |
K E32 |
K F32 |
|
K A36 |
K D36 |
K E36 |
K F36 |
|
|
KH 40 |
K DH40 |
K EH 40 |
K F40 |
|
|
Ntxiv dag zog |
K A43 |
K D43 |
K E43 |
K F43 |
|
K A47 |
K D47 |
K E47 |
K F47 |
|
|
K A51 |
K D51 |
K E51 |
K F51 |
|
|
K A56 |
K D56 |
K E56 |
K F56 |
|
|
K A63 |
K D63 |
K E63 |
K F63 |
|
|
K A70 |
K D70 |
K E70 |
K F70 |
|
|
K A63N |
K D63N |
K E63N |
K F63N |
|
|
K A70N |
K D70N |
K E70N |
K F70N |
|
KR tus qauv shipbuilding steel qib sheel qib
|
KR Steel Phaj Qib |
||||
|
General Lub Zog |
R A |
R B |
R D |
R E |
|
Siab zog |
R A32 |
R D32 |
R E32 |
R F32 |
|
R A36 |
R D36 |
R E36 |
R F36 |
|
|
R AH 40 |
R DH40 |
R EH 40 |
R F40 |
|
|
Ntxiv dag zog |
R A43 |
R D43 |
R E43 |
R F43 |
|
R A47 |
R D47 |
R E47 |
R F47 |
|
|
R A51 |
R D51 |
R E51 |
R F51 |
|
|
R A56 |
R D56 |
R E56 |
R F56 |
|
|
R A63 |
R D63 |
R E63 |
R F63 |
|
Taw qhia rau lub nkoj hull phaj
General zog qib
Cov qib siab dav dav sib txawv los ntawm lawv qhov kev ntsuas qhov kub thiab txias, thaum tag nrho plaub sib koom ua ke yam tsawg kawg nkaus thiab lub zog tensile.
Qib A:Impact kuaj ntawm 20 degree.
Qib B:Impact kuaj ntawm 0 degree.
Qib D:Impact kuaj ntawm -20 degree.
Qib E:Impact kuaj ntawm -40 degree.
Siab - qib zog
Cov qib siab - cov qib muaj zog tau muab faib ntxiv los ntawm lawv qhov tsawg kawg nkaus tawm los lub zog thiab cuam tshuam cov tawv nqaij.
Yield zog 315 MPa:AH32, DH32, EH32, FH32.
Yield zog 355 MPa:AH36, DH36, EH36, FH36.
Yield zog 390 MPa:AH40, DH40, EH40, FH40.
Cov tsiaj ntawv A, D, E, thiab F nyob rau hauv cov qib no sib raug rau tib qhov kev cuam tshuam toughness kub raws li cov qib siab dav, xws li 0 degree, -20 degree, thiab -40 degree.
Daim ntawv thov
Shipbuilding daim hlau yog siv rau tag nrho cov txheej txheem loj ntawm lub nkoj.
- Hull:Lub ntsiab lub cev ntawm lub nkoj, nrog rau hauv qab, sab, thiab bulkheads.
- Decks thiab superstructure:Cov qib siab thiab cov qauv ntawm lub nkoj.
- Txhawb cov qauv:Internal thav duab thiab lwm yam kev txhim kho.
- Offshore structures:Platforms thiab cov hlab ntsha tshwj xeeb rau kev lag luam roj thiab roj.
- Cov nkoj tshwj xeeb:Cov phaj uas muaj qhov tawv tawv heev yog siv rau cov dej khov- cov nkoj hauv chav kawm lossis cov roj liquefied natural gas (LNG) nqa.

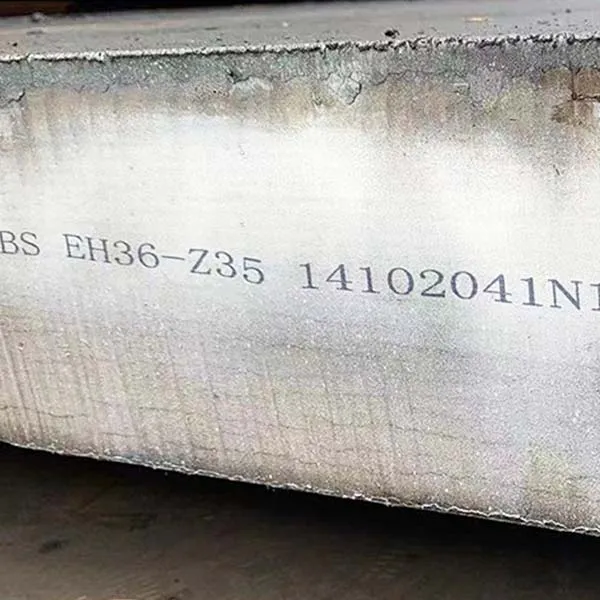

shipbuilding steel ntawv Khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
Peb lav qhov zoo thiab muaj nuj nqis ntawm Shipbuilding Phaj. Yog tias koj xav paub ntau ntxiv, thov hu rau peb!
Kev cia siab rau ntau yam khoom siv thawj zaug, xws li CNC Shearing tshuab, Xovxwm nres tshuab, Straightening tshuab, Roll Bending tshuab, Flat Bar Tshuab, Deburring tshuab thiab lwm yam, GNEE STEEL tuaj yeem muab ntau yam semi-cov khoom thiab cov kev pabcuam dav dav rau cov neeg siv khoom.
GNEE STEEL PROCESSING
1. CTL & SL Kev Pabcuam (141 SETS)
Tam sim no, GNEE STEEL tau xa ntau yam khoom siv CTL/SL los ntawm ltalis thiab Kauslim Teb thiab tuaj yeem muab cov kev pabcuam CTL/SL los ntawm cov hlau tsis zoo thiab cov pa roj carbon steel rau kub dov stainless hlau thiab carbon hlau nrog rau strips thiab ultra{0}}wide sheet.
CTL FACILITIES
Max Length: 16500mm
Max dav: 2200mm
Max Thickness: 25.4 hli
Max tawm zog: 1500Mpa
SL FACILITY
Max dav: 2200mm
Max Thickness: 18 hli
Max qhov ntau: 31
Max tawm zog: 1200Mpa
2.Kev pab cuam txiav
GNEE STEEL tau xa tawm ntau lub tshuab txiav siab heev los ntawm lub teb chaws Yelemees, Sweden, Amelikas thiab Nyij Pooj, suav nrog plasmas txiav tshuab, dej dav hlau txiav tshuab, laser txiav tshuab, nplaim taws txiav tshuab thiab pom tshuab. Txhawm rau ua kom tau raws li cov neeg siv khoom xav tau ntau haiv neeg, GNEE STEEL kuj tseem siv lub zes ua haujlwm ntau-txoj kev txiav thiab siv ntau lawm los txhim kho kev tsim khoom thiab txuag nqi rau cov neeg siv khoom.
Laser Tej Tshuab
Max Txiav Length: 40,000mm
Max dav: 4,600mm
Max Thickness: 100 hli
nplaim taws txiav tshuab
Max Txiav Length: 40,000mm
Max dav: 8,000mm
Max Thickness: 500 hli
Plasmas Tej Tshuab
Max Txiav Length: 30,000mm
Max dav: 5,000mm
Max Thickness: 100 hli
Dej- dav hlau txiav
Max Txiav Length: 12,000mm
Max dav: 4,010mm
Max Thickness: 250 hli
3. KEV PAB CUAM
Hlau Phaj Roll Bending
Max Rolling Thickness: mus txog 200mm
Qhov siab tshaj plaws: 4200mm
Tsis siv neeg dabtsi yog khoov tshuab -Nias Nres
Max Bending Peev Xwm:3000Ton
Max dabtsi yog khoov Length:15,000 mm
Cov kws tshaj lij hauv kev khoov siab -Lub zog & Hnav-Resistant Steels
Punching Tshuab
Max dav: 3,070mm
Max Thickness: 8 hli
Max siab: 250t
BEEVELING SERVICE
GNEE STEEL beveling platform muaj ntug milling tshuab, ntug planer, nplaim taws / ntshav zawj txiav tshuab, nplaim zawj txiav neeg hlau, desktop chamfering tshuab, gantry planer thiab lwm yam khoom siv siab heev los muab cov neeg siv khoom nrog cov kev pabcuam prefabrication, kev ua txhua hnub ntawm V- hom, Y- hom, X{2} thiab {2} cov txheej txheem tom ntej xws li vuam thiab sib dhos ntawm cov khoom.
Milling:
Max Txiav Length: 18,000mm
Max dav: 4500mm
Max Thickness: 120 hli
Beveling:
Max Length: 16,000mm
Max Thickness: 80 hli
MACHINING SERVICE
GNEE STEEL muaj CNC Portal -hom tho txawv thiab Milling tshuab, CNC pem teb- hom tho txawv thiab Milling tshuab, Vertical Precision 5-axis Milling Tshuab, Portal-hom Planer, Vertical Lathe, Cylindical Sib Tsoo tshuab, Hydraulic Planer thiab CNC Tshuab dhos thiab tuaj yeem muab cov khoom siv zoo rau cov neeg siv khoom.
Gantry Hom tho txawv & Milling Maching Center
Max Length: 48000mm
Max dav: 12500mm
Max Qhov siab: 8000mm
Max qhov siab: 10500mm
Sib sib zog nqus- qhov Drilling Equipment
Max Driling Qhov tob: 1,100mm
Max Qhov Loj: φ80mm
Max Diameter: φ4,500mm
MMulti-Qhov Drilling Equipment
Max Length: 13,000mm
Max dav: 10,000mm
Max Qhov Loj: φ105mm
Max Drilling qhov tob: 250mm
Pem teb tho txawv Thiab Milling Tshuab
Max Length: 24,000mm
Max Qhov siab: 8,000mm
Loj: 9x5m
Tshuab dhos ntsug
Max Qhov siab: 6,000mm
Max Diameter: φ22,00mm
Automated Ntug Milling Tshuab
Automated Edge Milling Tshuab yog cov khoom lag luam loj hauv -cov khoom siv milling. Nws feem ntau yog siv rau kev npaj vuam zawj (beveling) ntawm loj - daim hlau ua los ntawm stainless hlau, carbon hlau, thiab qib steel tshwj xeeb. Nws tuaj yeem ua cov phaj nrog qhov siab tshaj plaws thickness txog li 90 hli, qhov ntev ntawm 16 meters, thiab qhov dav ntawm 4 meters.
Nws yog nruab nrog dual milling units thiab lub siab tsis siv neeg milling cutter lub taub hau hloov qhov system, ua kom automated 4-ntug beveling. Nws qhov tshwj xeeb tshaj plaws yog cov cuab yeej siv hluav taws xob siv thaum milling wavy daim hlau thiab cov khoom tsis sib xws, uas ua kom muaj qhov sib xws ntawm qhov zawj tom qab milling.
Siv tshwj xeeb tsim milling cutter hau, nws muaj peev xwm ua tau heev nyuaj thiab complex zawj profiles nyob rau hauv ib tug pass.
Khoom siv:Cov pa roj carbon monoxide steel, siab nkoj steel, hnav-cov hlau tsis muaj zog, siab- lub zog steel, stainless hlau, nickel{2}}raws li alloys, thiab lwm yam.
Dav:1200 - 4200 hli
Ntev:5800 - 16000 hli
Thickness:5 - 90 hli
Qhov hnyav:Txog li 35 tons
Lub tshuab ntug milling no yog lub ntiaj teb premier automated bevel milling khoom. Nrog nws cov qauv tsim zoo heev thiab cov ntaub ntawv siab heev algorithms, nws ua tiav tag nrho automation los ntawm kev kuaj xyuas phaj mus rau cov txheej txheem milling tiag tiag, txhim kho kev ua haujlwm zoo thaum lav qhov siab.
- Kev ua kom raug
Ntev raug:± 1 hli thaum L <10m; ± 2 hli thaum L> 10m;
Dav raug:± 1 hli;
Diagonal raug:± 2 hli;
Hauv paus ntsej muag raug (blunt ntug):± 1mm rau Y-grooves; +0.5mm rau X-grooves.
- Kev Ua Haujlwm Zoo
Kev ua tau zoo yog ntau tshaj 10 npaug ntawm cov khoom siv ntug milling lossis ntug kev npaj.
Kev kho cua sov
Thaum tshav kub kub kho rauv
Max Qhov Loj: 36x12x13.5m
Max ntsuas kub: 1100 degree
Max loading peev: 800t
Kev kho cua sov ntawm cov hlab ntsha
Kev kho cua sov ntawm cov khoom siv mining
Kev kho cua sov ntawm Tube Sheet
Kev kho cua sov ntawm Lub Hwj Chim Lub Taub Hau
Case:Steel Phaj Khoom Rau 100,000m³ Puv Containment Ammonia Storage Tank Project
GNEE STEEL tam sim no koom nrogKev yuav khoom theem ntawm 100,000m³ tag nrho ntim ammonia cia tank project, muab siab - zoo steel phaj rau cov khoom tseem ceeb tank. Vim lub corrosive xwm ntawm ammonia thiab kev pheej hmoo ntawmAmmonia Stress Corrosion Cracking (SCC), qhov project yuav tsum nruj metallurgical tswj cov ntaub ntawv raws liEN 10028-3 tus qauv.
Ib qho tseem ceeb tshaj plaws kev xav tau ntawm qhov project no yog qhovnruj txwv ntawm qhov tseeb Yield Strength (Re)rau tag nrho cov ntaub ntawv qib NL2. Txhawm rau tiv thaiv SCC kev pheej hmoo hauv thaj chaw ammonia cia, covyield zog yuav tsum tsis pub tshaj 390 MPa, tsis hais tus nqi nominal teev nyob rau hauv tus qauv lossis phaj thickness ntau yam. Qhov kev xav tau no ua rau muaj kev xav tau ntau dua ntawm kev tswj cov txheej txheem steelmaking, kev kho cua sov kom ruaj khov, thiab kuaj cov khoom siv.
Raw siab -lub zog steel daim hlau npaj rau 100,000 m³ tag nrho ntim ammonia cia tank ntau lawm
Cov ntaub ntawv ntawm qhov project thiab kev xav tau
Qhov project tsuas yog sivP355NL2 thiab P275NL2 normalized siab lub nkoj steel daim hlau, uas yog dav siv nyob rau hauv qis - kub cia tank vim lawv zoo heev toughness thiab weldability.
Cov kev qhia tshwj xeeb tseem ceeb suav nrog:
- Cov ntaub ntawv qib:P355NL2 thiab P275NL2 (Normalized)
- Yield zog:Standard yam tsawg kawg nkaus / Maximum txwv rau390 MPa ua
- Hardness:Tsawg dua lossis sib npaug li 225 HBW hauv cov khoom siv hauv paus
- Kev ntsuam xyuas cuam tshuam:Charpy-V ntsuas ntsuas ntawm-50 degree, yam tsawg kawg 27J
- Ntawv pov thawj:TS EN 102043.1 daim ntawv pov thawj, nrog yeem3.2 ntawv pov thawj
Cov kev cai nruj no xyuas kom meej tias cov hlau phaj tswj cov khoom ruaj khov thiab ua haujlwm siab rau ammonia-ua rau muaj kev ntxhov siab corrosion thaum lub sijhawm ua haujlwm ntev-.
Precision dov thiab tsim cov hlau phaj rau hauv cov ntu nkhaus rau 100,000 m³ ammonia cia tank.
Project Plate Quantity thiab Thickness Distribution
Tag nrho cov hlau xav tau rau qhov project no ammonia cia tank yog ntau txhiab tons, feem ntau faib thoob plaws ntau lub tank:
P355NL2 - Sab hauv & Outer Tank Plhaub daim hlau
- Cov chav kawm qis qis:50 hli thickness - kwv yees li . 2,000 tons
- Cov chav kawm Middle plhaub:25 hli thickness – kwv yees li . 1,400 tons
- Cov chav kawm Upper shell:10 hli thickness – approx . 500 tons
P275NL2 - Tank hauv qab phaj
- Thickness:10–15 mm – approx . 750 tons
P275NL2 - Ncua lub ru tsev
- Thickness:5–8 mm – approx . 180 tons
S275JR - Sab nrauv ru tsev (Ambient Structure)
- Thickness:10 mm – approx . 450 tons
Txhawm rau txhim kho tank fabrication efficiency thiab txo cov voj voog ncig, qhov project kuj xav taudav hlau daim hlautxhawm rau txo qis cov pob qij txha welding, uas yuav pab txo qis kev pheej hmoo ntawm SCC hauv kev pabcuam ammonia.
Tsim steel ntu qhwv thiab racked rau kev tiv thaiv, npaj rau 100,000 m³ ammonia cia tank sib dhos.
GNEE STEEL muab siab -precision steel phaj dov thiab lub tog raj kheej tsim cov kev daws teeb meem rau lub tank manufacturers thoob ntiaj teb.Xa peb koj cov phaj specifications los yog fabrication drawings rau ib tug ceev hais.
| HOM | QIB | SPECIFICATIONS |
| Carbon Steel / Tsawg Alloy Coil | Q235A / B / C / D / Q355B (Q345B) / C / D / E / SS400 / SAPH400-C / ASTMA283 Qib C |
0.7 ~ 2.0 * 1250/1500 hli * C 2.3 ~ 19.5 * 1250/1500/1800/2000 hli * C |
| Medium Heavy Phaj | Q235B/Q355B(Q345B)/C/D/E | 6.0-200x150mm-4000mmxL |
| Vessel Phaj |
Q245R/Q345R/HP295/SA516MGR485/SA516GR70/P355NL2/P275NL2/ S275JR / SPV490 / ASTM A537 Chav Kawm 1 / Chav Kawm 2 |
2.5-120x1500mm-3000mmxL |
| Siab zog steel |
510L/610L/700L/750L/BS600MCK4/BS700MCK2/BS700MCK4/ BS960E/BWELDY700QL2/L4/BWELDY960QL4/HG60D/70D/785D/ Q460D/Q550D/690D/690E/TQ600MCD/TQ700MCD/S700MCD/ WYS600/700/STRENX700MCE/Q490E/Q490D |
1.2-60x1500mm-2500mmxL |
| Patterned Hlau | HQ235A|B | 1.2-60x1500mm-2500mmxL |
| Hnav-Resistance Steel |
NM360/400/450/500/NM300TP/400TP/450TP/ ABREX400/450/500/B-HARD450XKY/ CREUSABRO4800/8000/EH C400LE/450LE/500LE/ |
3.0-50x1250mm-3300mmxL |
| Txias Rolled Coil | DC01/RECC/REDT/SPCC/ST12 | 0.5-3.0x1250mm-1500mmxC |
| Galvanized phaj | DC51D+AZ/DC51D+Z/DX51D+Z/SGH340+Z275/Z275/Z120/S350GD+ZM275 | 0.45-3.0x1250mm-1500mmxC |
| Pickled Coil | DD11/SPHC | 2.0-6.0x1500xC |
Stainless hlau khoom thiab nto Specifications
| HOM | QIB | TUB NTXHAIS | KHOOM |
| Austenitic | 304/304H/304L/304J1 | 0.25-150 hli | 2B/BA/NO.4/8K/SB/HL/NO.1 |
| Austenitic | 321 | 0.4-80 hli | 2B/BA/NO.4/8K/SB/HL/NO.1 |
| Austenitic | 316/316L/317L/316 Ti | 0.3-80 hli | 2B/BA/NO.4/8K/SB/HL/NO.1 |
| Austenitic | 201(J1/J2/J5) | 0.35-12 hli | 2B/NO.1/1D |
| Ferrite | 430 | 0.4-3.0 hli | 2B/BA/NO.4/8K/SB/HL |
| Ultra ntshiab Ferrite | 443 | 0.4-2.0 hli | 2B |
| Ultra ntshiab Ferrite | 436L/439/444/441 | 0.5-3.0 hli | 2B/2D |
Tshwj xeeb hlau / Nickel Base Alloy
| HOM | QIB | Qib (ASTM) | Qib (EN) | TUB NTXHAIS |
| Thaum tshav kub kub-Resistant Steel | 309S | S30908 | 1.4833 | 0.5-40 hli |
| Thaum tshav kub kub-Resistant Steel | 310S | S31008 | 1.4845 | 0.5-40 hli |
| Duplex Stainless Hlau | 2101 | S32101 | 1.4162 | 1.5-50 hli |
| Duplex Stainless Hlau | 2304 | S32304 | 1.4362 | 3.0-50 hli |
| Duplex Stainless Hlau | 2205 | S32205/S31803 | 1.4462 | 0.5-60 hli |
| Duplex Stainless Hlau | 2507 | S32750 | 1.4410 | 1.0-60 hli |
| Super Austenitic-Steel | 904L | N08904 | 1.4539 | 0.6-50 hli |
| Super Austenitic-Steel | 254 SIB | S31254 | 1.4547 | 0.5-50 hli |
| Super Austenitic-Steel | 1.4529 | N08926 | 1.4529 | 0.5-50 hli |
| Super Austenitic-Steel | AL-6 XN | N08367 | 1.4478 | 0.5-50 hli |
| Nickel Base Alloy | Alloy 31 | N08031 | 1.4562 | 1.0-50 hli |
| Nickel Base Alloy | 800 | N08800 | 1.4876 | 0.8-50 hli |
| Nickel Base Alloy | 800H | N08810 | 1.4958 | 0.8-50 hli |
| Nickel Base Alloy | 800 HT | N08811 | 1.4959 | 0.8-50 hli |
| Nickel Base Alloy | Alloy 28 | N08028 | 1.4563 | 1.0-20 hli |
| Nickel Base Alloy | Alloy 20 | N08020 | 2.4660 | 1.0-20 hli |
| Nickel Base Alloy | 825 | N08825 | 2.4858 | 0.8-40 hli |
| Nickel Base Alloy | C276 | N10276 | 2.4819 | 0.5-50 hli |
| Nickel Base Alloy | C22 | N06022 | 2.4602 | 1.0-50 hli |
| Nickel Base Alloy | 625 | N06625 | 2.4856 | 0.8-20 hli |
| Nickel Base Alloy | 400 | N04400 | 2.4360 | 1.0-20 hli |
| Nickel Base Alloy | 600 | N06600 | 2.4816 | 1.0-50 hli |
| Nickel Base Alloy | Pure Ni 201 | N02201 | 2.4061 | 0.5-20 hli |
| Titanium | TA1 | Gr.1 | Chav Kawm 1 | 0.5-50 hli |
| Titanium | TA 2 | Gr.2 | Chav kawm 2 | 0.5-50 hli |
Cim npe nrov: shipbuilding daim hlau, Tuam Tshoj shipbuilding daim hlau manufacturers, lwm tus neeg, hoobkas
