AH36 DH36 EH36 Hlau Phaj rau Shipbuilding
AH36 steel phaj yog tsim los ntawm dej hiav txwv - mus, ntug hiav txwv dej thiab dej hiav txwv navigation ships, nuv ntses nkoj thiab marine engineering lug nrog ib tug tuab ntawm tsis ntau tshaj 150mm steel phaj, Z rau cov yuav tsum tau ntawm cov hlau phaj nyob rau hauv lub suffix ntxiv Z25, Z35, kev siv high - marine engineering ships.
DH36: D yog qib zoo D, H yog siab - cov ntaub ntawv tsim lub zog, 36 siab tshaj compressive, Z yog Z - tensile. Rau siab zog siab zog hull structural steel. Shipbuilding steel feem ntau yog hais txog lub hull structural steel, uas yog hais txog kev tsim kho ntawm kev faib cov koom haum raws li cov kev cai ntawm kev tsim kho tshwj xeeb rau kev tsim cov hlau siv hauv kev tsim cov qauv hull. Feem ntau raws li kev txiav txim tshwj xeeb steel, teem caij, muag khoom, lub nkoj suav nrog nkoj phaj, ntu steel, thiab lwm yam.
EH36 nkoj phaj yog xa hauv annealed, kub dov, normalized, tswj dov, TM (thickness txawv, tus me nyuam raws li txoj cai) raws li txoj cai, thiab kuj yuav sheared los yog nplaim cut.Z steel phaj yuav tsum raug ultrasonic flaw detection, qhov flaw theem yuav tsum tau teev nyob rau hauv daim ntawv cog lus, raws li qhov yuav tsum tau ntawm qhov kev thov sab, los ntawm kev pom zoo ntawm cov khoom thiab cov kev xav tau {2. kuaj.
shipbuilding steel phaj tshuaj muaj pes tsawg leeg
|
Cov ntsiab lus |
C |
Mn |
Al |
Si |
P |
S |
|---|---|---|---|---|---|---|
|
AW 36 |
Tsawg dua lossis sib npaug li 0.18 |
0.7~1.60 |
Ntau dua lossis sib npaug rau 0.015 |
0.10~0.50 |
Tsawg dua los yog sib npaug li 0.04 |
Tsawg dua los yog sib npaug li 0.04 |
|
DH 36 |
Tsawg dua lossis sib npaug li 0.18 |
0.90~1.60 |
Ntau dua lossis sib npaug rau 0.015 |
0.10~0.50 |
Tsawg dua los yog sib npaug li 0.04 |
Tsawg dua los yog sib npaug li 0.04 |
|
EH 36 |
Tsawg dua lossis sib npaug li 0.18 |
0.90~1.60 |
Ntau dua lossis sib npaug rau 0.015 |
0.10~0.50 |
Tsawg dua los yog sib npaug li 0.04 |
Tsawg dua los yog sib npaug li 0.04 |
steel phaj rau shipbuilding mechanical khoom
|
Qib Steel |
Thickness / hli |
Tawm taw tes / MPa |
Tensile zog / MPa |
Elongation / % |
V-Type impact test |
||
|
Kub / degree |
Qhov nruab nrab cuam tshuam nqus ua haujlwmAkv ua/J |
||||||
|
Ntsug |
Kab rov tav |
||||||
|
AW 36 |
Tsawg dua los yog sib npaug li 50 |
Ntau dua lossis sib npaug rau 355 |
490~620 |
Ntau dua lossis sib npaug 22 |
0 |
Ntau dua lossis sib npaug li 34 |
Ntau dua lossis sib npaug li 24 |
|
DH 36 |
Tsawg dua los yog sib npaug li 50 |
Ntau dua lossis sib npaug rau 355 |
490~620 |
Ntau dua lossis sib npaug 22 |
-20 |
Ntau dua lossis sib npaug li 34 |
Ntau dua lossis sib npaug li 24 |
|
EH 36 |
Tsawg dua los yog sib npaug li 50 |
Ntau dua lossis sib npaug rau 355 |
490~620 |
Ntau dua lossis sib npaug 22 |
-40 |
Ntau dua lossis sib npaug li 34 |
Ntau dua lossis sib npaug li 24 |

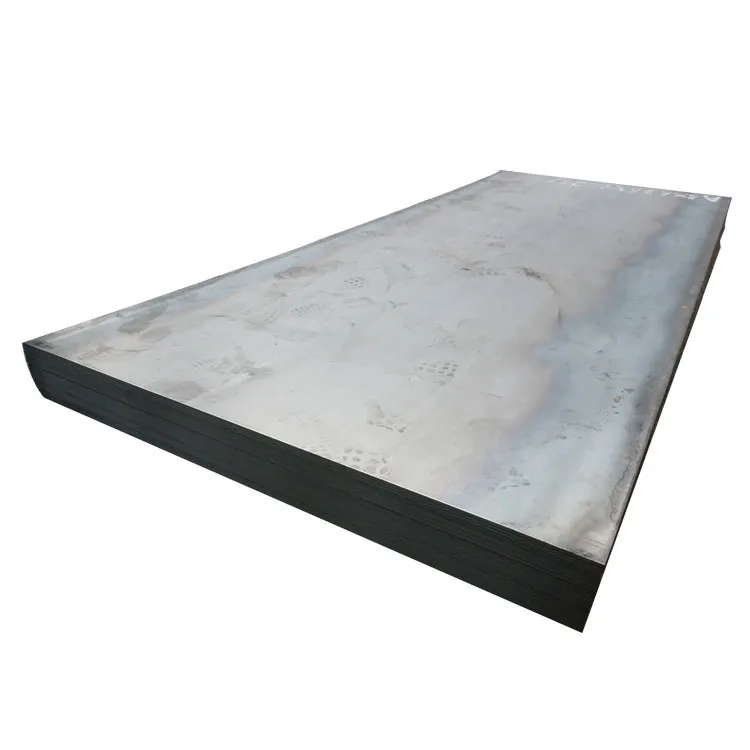

marine steel phaj Khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
Peb muaj cov neeg ua haujlwm pabcuam hauv online. Yog tias koj muaj lus nug txog AH36 DH36 EH36 Hlau Phaj rau Shipbuilding, thov xa peb cov lus nug thiab peb yuav teb rau koj hauv ib hnub ua haujlwm.
