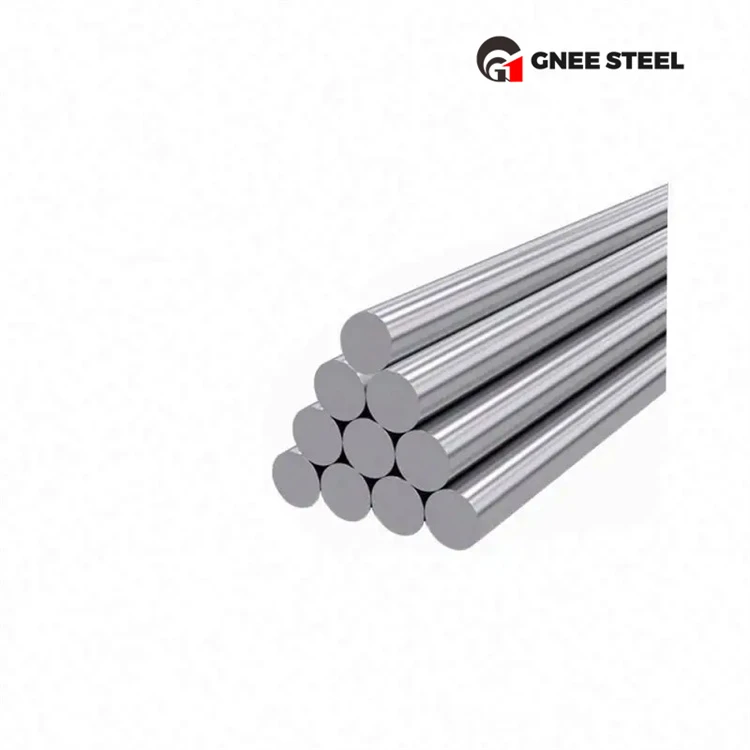

2Cr13 Hardware Tool Steel
2Cr13 stainless hlau round bar yog cov khoom siv hlau.
2Cr13 yog martensitic stainless hlau hlau nplaum, zoo hardness, vuam rau preheat. Thiab Q235 welding nrog austenitic stainless hlau electrodes tsis tas yuav preheat, vuam tswj weld dilution tus nqi, tsis viav vias vuam, siv me me tam sim no.
2Cr13 yog chromium 13 hom stainless hlau, hom hlau no yog tsim los ua rau hauv nruab nrab lossis tsis muaj zog corrosive ib puag ncig ua haujlwm lossis cov khoom siv, xws li scalpels, txiab txiab, turbine hniav, stainless hlau txiv ntseej thiab lwm yam.
2Cr13 stainless hlau round bar tshuaj muaj pes tsawg leeg
| Qib Steel | C | Si (Less than los sib npaug) | Mn (Less tshaj los yog sib npaug) | P (Less tshaj los yog sib npaug) | S (Less tshaj los yog sib npaug) | Cr | Ni (Less than los sib npaug) |
| 2 cr13 | 0.16 – 0.25 | 1.00 | 1.00 | 0.040 | 0.030 | 12.00 – 14.00 | 0.60 |
2Cr13 stainless hlau puag ncig cov khoom vaj khoom tsev
| Qib Steel | Tensile zog (MPa) | Yield zog (MPa) | Elongation% | Txo hauv cheeb tsam% | Impact zog (J) | Hardness (quenching & tempering) | Hardness (Annealing) |
| 2 cr13 | Ntau dua lossis sib npaug rau 640 | Ntau dua lossis sib npaug li 440 | Ntau dua lossis sib npaug li 20 | Ntau tshaj los yog sib npaug rau 50 | Ntau dua lossis sib npaug li 63 | Tsawg dua lossis sib npaug rau 192HB | Tsawg dua lossis sib npaug rau 223HB |
2Cr13 stainless hlau round pas nrig lub cev muaj zog
Qhov ceev (g / cm3): 7.75
Melting point: 1470-1510 degree
Lub peev xwm kub tshwj xeeb (J / Kg·K): 460 ntawm 0-100 degree
Hluav taws xob tiv thaiv (μΩ·m): 0.55 ntawm 20 degree
Longitudinal modulus ntawm elasticity (kN / mm2): 200 ntawm 20 degree
Thermal conductivity:
| Kub / degree | 100 | 200 |
| Thermal conductivity (W / m · K) | 22.2 | 26.4 |
Coefficient ntawm linear thermal expansion:
| Kub / degree | 0-100 | 0-500 |
| Coefficient ntawm linear thermal expansion (10-6 / K) | 10.3 | 12.2 |
2Cr13 round stainless hlau khoom cov ntsiab lus
2Cr13 stainless hlau quenched lub xeev siab hardness, zoo corrosion kuj. Ntau yam siv los ua cov cuab yeej txiav, yog "txiav theem" martensitic steel, kuj siv rau cov riam phais, zoo ib yam li cov hlau tsis zoo xws li Brinell siab -chromium steel, tab sis kuj siv los ua turbine blades, thiab lwm yam., Scope ntawm daim ntawv thov yog dav heev.
2Cr13 ceev yog 7.75g / cm3.
2Cr13 quenching hardness: general 2Cr13 quenching kub nyob rau hauv 980 ~ 1050℃C, noj 980℃C cua sov roj quenching hardness yog ho qis dua 1050℃C cua sov roj quenching, 980℃C roj quenching hardness ntawm 45 ~ 1050 quenching℃siab tshaj C, 2 HRC . 1050℃C quenching, txawm li cas los xij, tom qab quenching kom tau lub koom haum ntawm cov nplej yog thicker, brittleness yog loj. Nws raug nquahu kom siv 1000℃cua sov quenching tuaj yeem tau txais lub koom haum zoo dua thiab hardness.
2Cr13 round stainless hlau pas nrig Cov khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
Peb lav qhov zoo thiab muaj nuj nqis ntawm 2Cr13 Hardware Tool Steel. Yog tias koj xav paub ntau ntxiv, thov hu rau peb!
