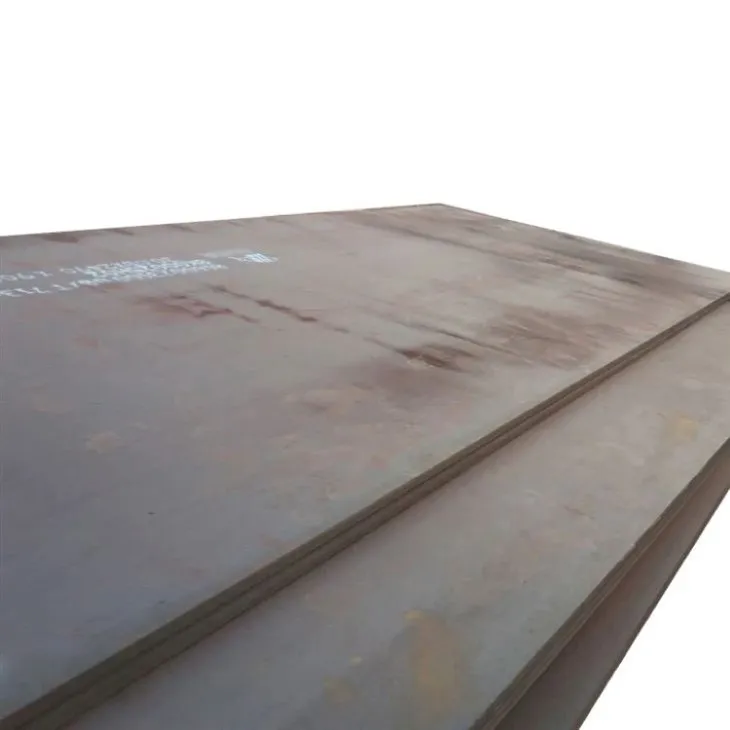

Tsawg Tensile Strength Carbon A285 Qib A Steel yog ib qho kev qhia tshwj xeeb rau qis thiab nruab nrab tensile lub zog carbon steel daim hlau ntawm lub nkoj siab zoo rau kev siv lub nkoj siab. Tsawg Tensile Strength Carbon A285 Qib A Steel muaj lub zog tensile ntau ntawm 45-65 ksi.
| Qib Steel | ASTM A285 Mechanical Property | |||
|---|---|---|---|---|
| Thickness | Yield | Tensile | Elongation | |
| A285 qib A | mm | Min Mpa | Mpa | Tsawg% |
| 6-50 | 165 | 310-450 | 30% | |
| 50-200 | 165 | 310-450 | 27% | |
|
Txheem / Lub Tebchaws |
Qib sib npaug |
Ntsiab nta |
|---|---|---|
|
EN (EU) |
P235GH |
Tsawg carbon, tawm los 235 MPa |
|
DIN (Lub teb chaws Yelemees) |
HI |
Boiler -qib, tensile 360-480 MPa |
|
JIS (Nyiv) |
SWV 235 |
Weldable, rau siab boilers |
|
BS (UK) |
161-360A |
Sib piv lub zog |
|
GB (Tuam Tshoj) |
Q245R |
Thaum tshav kub kub-resistant, tsis tshua muaj siab |
Qhov ntom ntom thiab kev xa khoom
Raws li tau teev tseg hauv 285 g cov khoom siv kho tshuab thiab cov lus qhia ceev, qhov ceev yog 7.85 g / cm³ (7850 kg / m³), pab kev suav tseeb rau lub nkoj hnyav.
Cov phaj xa tuaj raws li - dov, nrog Gneesteel muab kev ua haujlwm zoo lossis kev ntxhov siab los txo qhov kev ntxhov siab ntawm vuam.
Peb suav nrog kev kuaj ultrasonic kom zoo, xyuas kom cov phaj yog fabrication -npaj.
Muaj Specifications thiab Qauv
Gneesteel muab ASTM A285 Qib A hauv cov tuab ntawm 6mm txog 50mm (tso rau qis- qib zog), dav txog 3500mm, thiab ntev mus txog 18000mm.
Raws li ASTM A285 / A285M, peb muab kev cai beveling thiab txiav.
Rau qhov sib txawv zog, piv nrog ASTM A 285 Qib B lossis C.
