A572 High Strength Steel Lub kaum ntse ntse hlau
A572 lub kaum sab xis steel, tseem hu ua lub kaum sab xis hlau, lub kaum sab xis steel, L- zoo li tus bracket, ntu steel lossis lub kaum sab xis steel, yog cov khoom kub - dov HSLA. Malleability yog ib qho ntawm cov yam ntxwv tseem ceeb ntawm lub kaum sab xis steel hlau, vim lawv feem ntau siv rau hauv kev txhawb nqa thiab cov khoom siv hauv tsev kom ntxiv dag zog rau cov ces kaum, nrog rau kev txhawb nqa dav dav ntawm cov khoom xws li txuas hniav thiab arches. Txhua lub kaum sab xis muaj L-zoo li tus ntoo khaub lig- ntu, thiab txawm hais tias 90℃kaum feem ntau, lawv tuaj yeem tsim nrog qhov sib npaug lossis tsis sib npaug ceg ntev raws li cov neeg siv khoom tshwj xeeb.
a572 hlau kaum hlau tshuaj muaj pes tsawg leeg
| Yam khoom | Qib | Cov pa roj carbon, max,% | Manganese, max,% | Silicon, max,% | Phosphorus, max,% | Sulfur, max,% |
|---|---|---|---|---|---|---|
| A572 Steel Lub kaum sab xis | 42 | 0.21 | 1.35 | 0.40 | 0.04 | 0.05 |
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 | |
| 55 | 0.25 | 1.35 | 0.40 | 0.04 | 0.05 |
a572 steel kaum hlau mechanical khoom
| Yam khoom | Qib | Yield Point, min, ksi [MPa] | Tensile zog, min, ksi [MPa] |
|---|---|---|---|
| A572 Steel Lub kaum sab xis | 42 | 42 [290] | 60 [415] |
| 50 | 50 [345] | 65 [450] | |
| 55 | 55 [380] | 70 [485] |
vaj huam sib luag steel Cov khoom loj
| Ntu Dimension A x A x t (mm) |
Thaj Chaw (mm2/m) |
Chav ntsuas hnyav (kg / m) |
|---|---|---|
| 20 x 20 x 3 | 1.12 | 0.88 |
| 25 x 25 x 3 | 1.42 | 1.12 |
| 25 x 25 x 4 | 1.85 | 1.45 |
| 25 x 25 x 5 | 2.27 | 1.78 |
| 30 x 30 x 3 | 1.74 | 1.36 |
| 30 x 30 x 4 | 2.27 | 1.78 |
| 30 x 30 x 5 | 2.78 | 2.18 |
| 35 x 35 x 3 | 2.04 | 1.6 |
| 35 x 35 x 3.5 | 2.35 | 1.85 |
| 35 x 35 x 4 | 2.67 | 2.09 |
| 35 x 35 x 5 | 3.28 | 2.57 |
| 38 x 38 x 4.5 | 3.26 | 2.56 |
| 38 x 38 x 6 | 4.24 | 3.33 |
| 40 x 40 x 3 | 2.35 | 1.84 |
| 40 x 40 x 4 | 3.08 | 2.42 |
| 40 x 40 x 5 | 3.79 | 2.97 |
| 40 x 40 x 6 | 4.48 | 3.52 |
| 45 x 45 x 3 | 2.66 | 2.09 |
| 45 x 45 x 4 | 3.49 | 2.74 |
| 45 x 45 x 4.5 | 3.90 | 3.06 |
| 45 x 45 x 5 | 4.30 | 3.38 |
| 45 x 45 x 6 | 5.09 | 4.0 |
| 45 x 45 x 7 | 5.86 | 4.6 |
| 50 x 50 x 3 | 2.96 | 2.33 |
| 50 x 50 x 4 | 3.89 | 3.06 |
| 50 x 50 x 5 | 4.80 | 3.77 |
| 50 x 50 x 6 | 5.69 | 4.47 |
| 50 x 50 x 7 | 6.56 | 5.15 |
| 50 x 50 x 8 | 7.41 | 5.82 |
| 50 x 50 x 9 | 8.24 | 6.47 |
| 55 x 55 x 4 | 4.31 | 3.38 |
| 55 x 55 x 5 | 5.32 | 4.18 |
| 55 x 55 x 6 | 6.31 | 4.95 |
| 60 x 60 x 4 | 4.71 | 3.7 |
| 60 x 60 x 5 | 5.82 | 4.57 |
| 60 x 60 x 6 | 6.91 | 5.42 |
| 60 x 60 x 7 | 7.98 | 6.26 |
| 60 x 60 x 8 | 9.03 | 7.09 |
| 60 x 60 x 10 | 11.1 | 8.69 |
| 63 x 63 x 5 | 6.14 | 4.82 |
| 63 x 63 x 6 | 7.29 | 5.72 |
| 63 x 63 x 6.5 | 7.85 | 6.17 |
| 65 x 65 x 4 | 5.13 | 4.02 |
| 65 x 65 x 5 | 6.34 | 4.97 |
| 65 x 65 x 6 | 7.53 | 5.91 |
| 65 x 65 x 7 | 8.70 | 6.83 |
| 65 x 65 x 8 | 9.85 | 7.73 |
| 65 x 65 x 9 | 11.0 | 8.62 |
| 65 x 65 x 10 | 12.1 | 9.49 |
| 65 x 65 x 11 | 13.2 | 10.3 |
| 70 x 70 x 5 | 6.84 | 5.37 |
| 70 x 70 x 6 | 8.13 | 6.38 |
| 70 x 70 x 7 | 9.4 | 7.38 |
| 70 x 70 x 8 | 10.7 | 8.37 |
| 70 x 70 x 9 | 11.9 | 9.32 |
| 70 x 70 x 10 | 13.1 | 10.3 |
| 75 x 75 x 4 | 5.93 | 4.65 |
| 75 x 75 x 5 | 7.34 | 5.76 |
| 75 x 75 x 6 | 8.73 | 6.85 |
| 75 x 75 x 7 | 10.1 | 7.93 |
| 75 x 75 x 8 | 11.4 | 8.99 |
| 75 x 75 x 9 | 12.8 | 10 |
| 75 x 75 x 10 | 14.1 | 11.1 |
| 76 x 76 x 5 | 7.44 | 5.84 |
| 76 x 76 x 6.5 | 9.54 | 7.49 |
| 76 x 76 x 8 | 11.6 | 9.11 |
| 76 x 76 x 9.5 | 13.6 | 10.7 |
| 80 x 80 x 5 | 7.86 | 6.17 |
| 80 x 80 x 6 | 9.35 | 7.34 |
| 80 x 80 x 7 | 10.8 | 8.49 |
| 80 x 80 x 8 | 12.3 | 9.63 |
| 80 x 80 x 9 | 13.7 | 10.8 |
| 80 x 80 x 10 | 15.1 | 11.9 |
| 90 x 90 x 5 | 8.88 | 6.97 |
| 90 x 90 x 6 | 10.6 | 8.3 |
| 90 x 90 x 7 | 12.2 | 9.61 |
| 90 x 90 x 8 | 13.9 | 10.9 |
| 90 x 90 x 9 | 15.5 | 12.2 |
| 90 x 90 x 10 | 17.1 | 13.4 |
| 100 x 100 x 8 | 15.5 | 12.2 |
| 100 x 100 x 10 | 19.2 | 15.0 |
| 100 x 100 x 12 | 22.7 | 17.8 |
| 120 x 120 x 10 | 23.2 | 18.2 |
| 120 x 120 x 12 | 27.5 | 21.6 |
| 130 x 130 x 12 | 30.0 | 23.6 |
| 150 x 150 x 10 | 29.3 | 23.0 |
| 150 x 150 x 12 | 34.8 | 27.3 |
| 150 x 150 x 15 | 43.0 | 33.8 |
| 160 x 160 x 15 | 46.1 | 36.2 |
| 180 x 180 x 16 | 55.4 | 43.5 |
| 180 x 180 x 18 | 61.9 | 48.6 |
| 200 x 200 x 16 | 61.8 | 48.5 |
| 200 x 200 x 18 | 69.1 | 54.3 |
| 200 x 200 x 20 | 76.3 | 59.9 |
| 200 x 200 x 24 | 90.6 | 71.1 |
| 250 x 250 x 28 | 133 | 104.0 |
| 250 x 250 x 35 | 163 | 128.0 |
-

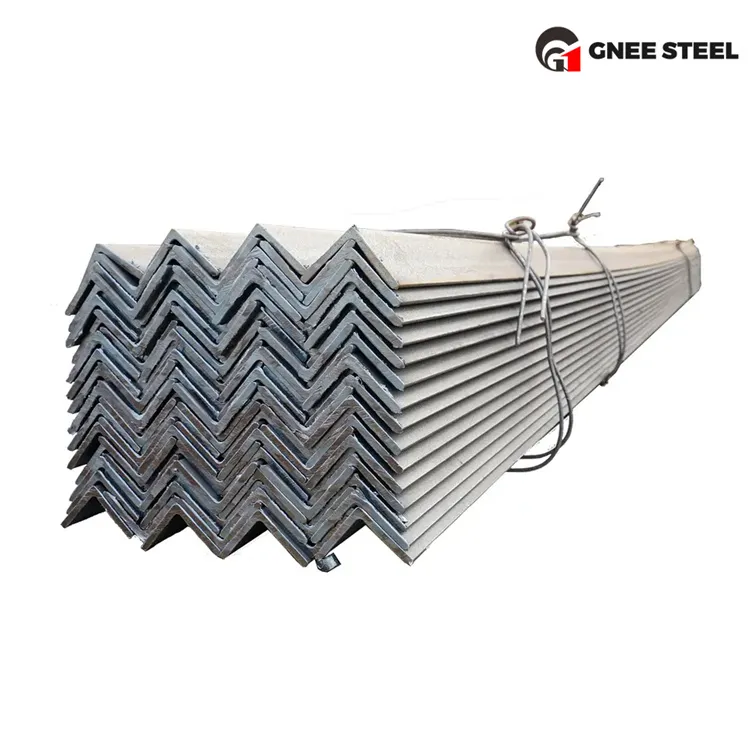

vaj huam sib luag kaum kab Khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
Khoom Description
Peb cov khoom tau dhau los ua qhov zoo nruj thiab tuaj nrog cov ntawv pov thawj kev tshaj lij. Yog tias koj muaj lus nug txog A572 High Strength Steel Angle Hlau, thov koj xav tshuaj xyuas.
