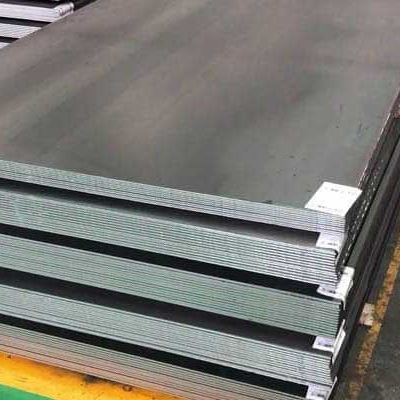

SA387 GR.22 CL.2 HLAU HLAU SIAB HLAU HLAU
Cov khoom lag luam
SA387GR2 yog ib qho chromium-molybdenum alloy steel phaj rau siab cov hlab teeb tau teev nyob rau hauv Asmeskas cov qauv (ASTM / ASME). Nws zwm rau SA-387 Series thiab feem ntau yog siv hauv kev tsim cov khoom siv ua haujlwm xws li kub, siab siab thiab corrosion.
Nomenclature: "SA" sawv cev rau cov lus ua ntej rau cov ntaub ntawv tshwj xeeb hauv cov qauv ASME; "387" Yog tus qauv, qhia tau tias cov phaj hlau no belongs rau Ntu 387 ntawm ASME code; "Gr22" txhais tau tias muaj cov tshuaj lom neeg muaj kuab lom qib ntawm cov hlau phaj, lub ntsiab lus nws muaj chromium (CR) thiab molybdenum (mo) hauv cov proportions tshwj xeeb; "CL2" feem ntau qhia tias cov phaj Steel tau cuam tshuam kev kho cua sov tshwj xeeb thaum lub sijhawm tsim khoom lossis ua tau raws li qee qib ua tau zoo.
Cov Khoom Siv
Tshuaj Yuav Tsum Tau
| C | Mn | P | S | Si | Cr | Mo | V |
|---|---|---|---|---|---|---|---|
| 0.05 – 0.15 | 0.30 – 0.60 | 0.025 | 0.025 | 0.50 | 2.00 – 2.50 | 0.90 – 1.10 | – |
Lub kaum tensile yuav tsum tau
| Tawm los MPa | Tensile MPa | Elongation (50 hli) | Reduc'n ntawm thaj chaw |
|---|---|---|---|
| 310 min | 515 – 690 | 18% min | 40% min |
Dab tsi yog qhov ntsuas kub rau SA 387 GR 11 CL 2?
Nyob rau hauv qis kawg ntawm qhov kub thiab txias ntawm qhov ntsuas kub thiab 1150℃f Min tempering kub), thiab sa 387 gr 22 (1250℃f Min tempering kub) yog siv. Cov qhab nia no tuaj yeem sau cov chav kawm 1 lossis 2 thiab tseem tuaj yeem muab rau hauv qhov qub & tempered lossis quenched thiab npau taws.
Dab tsi yog lub hardness ntawm sa 387 Gr 22 chav kawm2?
Hardness Xav Tau:
Brinell Hardness (HBW): tsawg dua lossis sib npaug ntawm 220 HBW (cov qauv yuav tsum tau tom qab ib txwm + Tempering).
Cov NTAU: 180-210 HBW (kev ntsuas ntsuas qhov tseem ceeb tom qab kev kho cua sov).
Txog Peb
Gnee lub hauv paus ntau lawm yog nyob hauv thaj chaw Hoobkas ntawm 80,000 square metres, nrog lub cheeb tsam qhuav mus txog 20,000 square metres. Lub Hoobkas ib puag ncig yog huv thiab huv si, nrog ua tiav cov chaw ua tiav thiab cov txheej txheem ntau lawm, muab cov neeg ua haujlwm nrog kev ua haujlwm zoo. Lub tuam txhab tseem txuas qhov tseem ceeb rau kev tiv thaiv ib puag ncig, cog lus los tsim kev tsim kho ib puag ncig ntsuab thiab txhawb nqa kev txhim kho kom zoo dua qub.
Cim npe nrov: SA387 GR.22 cl.2 Lub raj raj siab hlau, Tuam Tshoj SA387 GR.22 Cl.2 Cov Ntsig Ntsig Hlau Manufacturers, lwm tus neeg, Hoobkas
