SPV355 PVQ Steel Phaj
SPV355 yog Japanese qauv steel rau nruab nrab -kub siab hlab ntsha, kev ua raws li cov qauv kev rau JISG3115, dav siv nyob rau hauv roj av, tshuaj, fais fab chaw nres tsheb, boiler thiab lwm yam lag luam, rau zus tau tej cov reactors, tshav kub exchangers, separators, kheej kheej tso tsheb hlau luam, roj thiab roj tso tsheb hlau luam, liquefied hwj chim reactors, boiler plhaub, roj tank, liquefied hwj chim reactors roj av cylinders, siab - cov kav dej siab hauv cov chaw nres tsheb hauv dej, turbine worm shells thiab lwm yam khoom siv thiab cov khoom siv.
G3115 SPV355 pVQ steel phaj tshuaj muaj pes tsawg leeg
|
Qib / Khoom siv |
Element |
Composition(Max-A, Min-I) |
|
JIS G 3115 SPV355 |
C |
A:0.20 |
|
Mn |
A:1.60 |
|
|
Si |
A:0.15-0.55 |
|
|
P |
A:0.030 |
|
|
S |
A:0.030 |
G3115 SPV355 siab hlab ntsha steel ntawv txhua yam khoom
| Phaj Thickness (mm) | Yield zog ReHMPa min | Tensile zog Rm MPa | Elongation A% min | Impact Energy KV2 J min ntawm qhov kub thiab txias hauv℃ntawm | ||
| -20 | -10 | 0 | ||||
| 6 Tsawg dua lossis sib npaug t Tsawg dua lossis sib npaug rau 50 | 355 | 520-640 | 18 | 47 (TSI) | - | 47 |
| 50<> | 335 | |||||
| 100<> | 315 | |||||
SPV355 boiler zoo daim hlau Qhov siab tshaj plaws Carbon sib npaug tus nqi (CEV)
| Qib | Kev xa khoom | CEV max for nominal thickness t in mm | ||
| 6 Tsawg dua lossis sib npaug t Tsawg dua lossis sib npaug rau 50 | 50<> | 100<> | ||
| SPV355 | TMCP | 0.40 | 0.42 | 0.44 |
g3115 sPV355 nkoj phaj Khoom Paub meej
SPV355 thawv phaj tus me nyuam lub xeev: SPV355 steel phaj thickness tsawg dua 40 hli xaiv kub dov lub xeev tus me nyuam, steel phaj thickness ntau dua 40 hli xaiv normalized lub xeev tus me nyuam. Lub hom phiaj yog los txo qhov kev ntxhov siab sab hauv ntawm cov hlau phaj.
SPV355 steel phaj tus me nyuam lub xeev qhia:
SPV355 steel phaj default normalized lub xeev tus me nyuam
SPV355 steel phaj thickness txuas ntxiv tuaj yeem ua tiav; Z15, Z25, Z35
SPV355 steel phaj thickness tsis pom kev tuaj yeem ua tiav; 1 kev sojntsuam, 2 kev sojntsuam, 3 kev sojntsuam
SPV355 steel phaj thickness lub thicker qhov nyuaj kom tau raws li qhov tsis pom kev, feem ntau siv specifications 20-130 tuaj yeem lav qhov kev sojntsuam,
Tshaj 130-200 tuaj yeem txaus siab 2 qhov kev sojntsuam lossis German tus qauv peb sojntsuam.
PV355 steel phaj tuaj yeem ua tau kub dov, cov txheej txheem kev kho cua sov hauv lub xeev, feem ntau rau cov kev xav tau tsis siab koj tuaj yeem siv kub dov rau ntawm kab, tab sis qee qhov kev xav tau siab dua, lossis siv cov txheej txheem kev kho cua sov kom zoo. Siv dav hauv roj av, tshuaj lom neeg, chaw nres tsheb fais fab, boiler thiab lwm yam lag luam, siv rau hauv kev tsim cov reactors, heat exchangers, separators, ball tanks, oil and gas tanks, liquefied gas tanks, nuclear power reactor pressure shell, boiler ladle, liquefied petroleum gas cylinders, hydropower station high{2}, hydraulic worms thiab lwm yam.

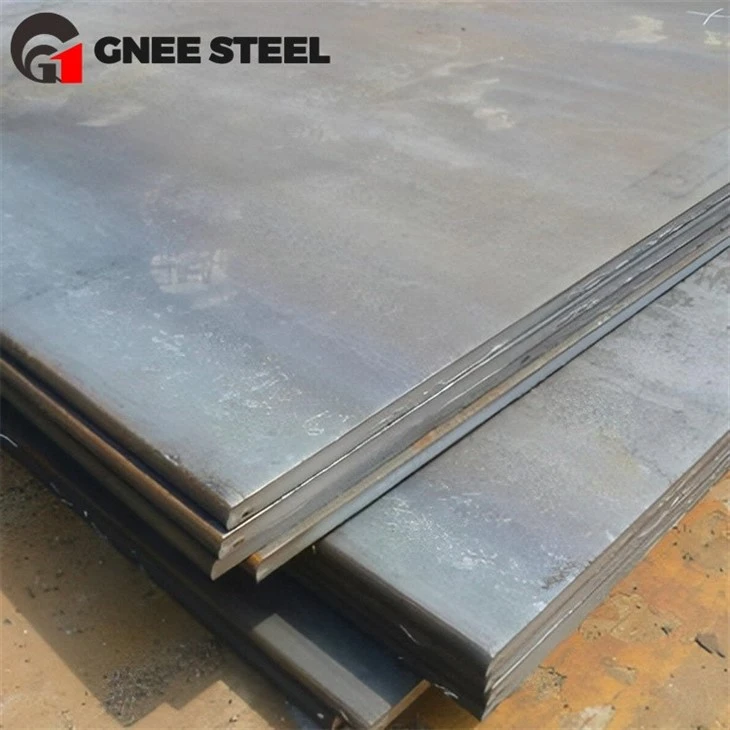

G3115 SPV355 boiler phaj Khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
Peb lav qhov zoo thiab muaj nuj nqis ntawm JIS G3115 SPV355 Steel Sheets. Yog tias koj xav paub ntau ntxiv, thov hu rau peb!
