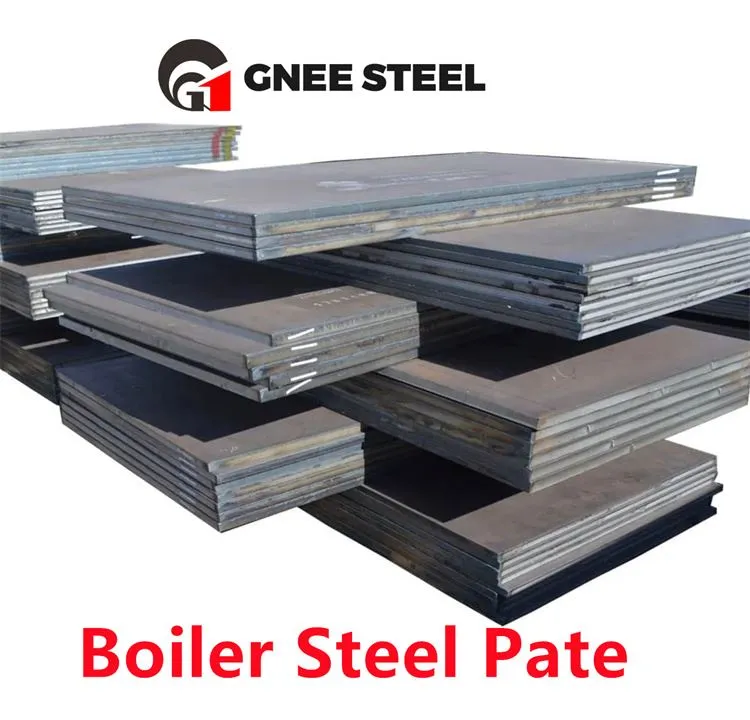

16MnDR Thawv Steel Phaj
16MnDR yog ib hom qis- kub siab lub nkoj steel phaj, tus qauv tswj: GB3531.
16Mn- qhia tias cov ntsiab lus carbon hauv cov phaj hlau yog li 0.16%, D- qhia txog qhov kub thiab txias, R- qhia txog lub nkoj siab. (feem ntau, thaum cov ntsiab lus ntawm cov khoom siv tshuaj hauv cov hlau yog siab, nws yuav tsum tau qhia hauv cov khoom siv, piv txwv li, 1.6% manganese yog sau li 16Mn), 16MnDR yog ib hom hlau phaj rau lub nkoj siab ntawm -40 degree.
16MnDR boiler steel phaj tshuaj muaj pes tsawg leeg
| Qib | C% | SI% | Mn% | Ni% | Mo% | V% | Nb% | Alt% | P, max | S%, max |
| 16 MnDR | Tsawg dua lossis sib npaug O.20 | 0.15-0.50 | 1.2-1.6 | Tsawg dua lossis sib npaug O.40 | Ntau dua lossis sib npaug rau 0.020 | 0.02 | 0.01 |
16MnDR steel boiler phaj txhua yam khoom
| Qib Steel | Thickness, hli | Tensile zog | Yield zog, min | Elongation, %, min |
| 16 MnDR | 6 | 490-620 | 315 | 21 |
| 16 | 470-600 | 295 | ||
| 36 | 460-590 | 285 | ||
| 60 | 450-580 | 275 | ||
| 100 | 440-570 | 265 |
16MnDR Boiler Phaj Hlau loj, cov duab, qhov hnyav thiab qhov sib txawv tau tso cai
Qhov loj, cov duab thiab qhov sib txawv ntawm cov hlau phaj yuav tsum ua raws li cov kev cai ntawm GB / T709.
Thickness sib txawv ntawm steel phaj yuav tsum nyob rau hauv txoj kab nrog GB / T709 chav kawm B deviation yuav tsum, raws li qhov yuav tsum tau ntawm kev thov sab, kuj yuav GB / T709 chav kawm C sib txawv xa.
Cov hlau phaj yuav tsum tau xa raws li qhov ntsuas qhov hnyav, thiab qhov ceev ntawm cov phaj hlau rau kev suav yog 7.85g / cm³.
16MnDR siab nkoj phaj Ultrasonic soj ntsuam
16MnDR siab nkoj steel phaj thickness ntau dua 20mm normalized los yog normalized thiab tempered lub xeev xa ntawm steel daim hlau thiab thickness ntau tshaj 16mm quenched thiab tempered lub xeev xa ntawm steel daim hlau yuav tsum tau ultrasonic kuaj, lwm thicknesses ntawm steel phaj los ntawm cov khoom thiab xav tau sab kuj yuav ultrasonic kuaj ntawm txhua daim ntawv los ntawm kev sib tham, txoj kev nrhiav kom tau raws li GBT7070.
16MnDR siab nkoj phaj khoom Khoom duab
16MnDR feem ntau yog siv rau hauv petrochemical, chaw nres tsheb fais fab boiler thiab lwm yam kev lag luam los ua reactors, tshav kub exchangers, separators, pob tank, boiler ladles, nuclear reactor siab plhaub thiab lwm yam khoom.
