Siab Vessel Steel Phaj
Kev tsim khoom lag luam muaj cov txheej txheem tshwj xeeb ua haujlwm thiab tiv taus qee qhov siab ntawm cov khoom siv, hais tias lub nkoj siab. Cov hlab ntsha khaws cia, cov hlab ntsha tawg, cov hlab ntsha pauv cua sov thiab cov hlab ntsha sib cais yog cov hlab ntsha siab.
Peb lub tuam txhab tuaj yeem muab tau: P235GH, P265, P295, P275, P355NH, P460NH, 16Mo3, thiab lwm yam. Hauv kab lus no, kuv yuav qhia P355NH boiler phaj kom ntxaws.
P355NH belongs rau European txheem boiler phaj steel phaj, P355NH steel phaj siv tus qauv: EN10028 tshwj xeeb kev mob. P355NH steel phaj nws tus kheej tsis tsuas yog muaj lub zog siab, tab sis kuj muaj lub siab toughness, qaug zog tsis kam, cuam tshuam tsis kam, corrosion kuj, vuam thiab yooj yim rau txheej txheem thiab lwm yam kev ua tau zoo.
Cov qib EN tus qauv peb tuaj yeem muab tau suav nrog
|
TS EN 10028 |
P235GH, P265GH, P295GH, P355GH, 16Mo3 P275NH, P275NH, P275NL1, P275NL2, P355N, P355NH, P355NL1, P355NL2 P460N, P460NH, P460NL1, P460NL2 P355QH, P355QH, P355QL1, P355QL2, P460Q, P460QH, P460QL1, P460QL2 P500QH, P500QH, P500QL1, P500QL2, P690Q, P690QH, P690QL1, P690QL2 P355M, P355ML1, P355ML2, P420M, P420ML1, P420ML2 P460M, P460ML1, P460ML2 |
P355 series boiler steel phaj tshuaj muaj pes tsawg leeg
|
Lub ntsiab |
P355 NH |
P355NL1 |
P355 NL 2 |
Lub ntsiab |
P355 NH |
P355NL1 |
P355 NL 2 |
|
Cov pa roj carbon (C) |
0.18 |
0.18 |
0.18 |
Silicon (Si) |
0.50 |
0.50 |
0.50 |
|
Manganese (Mn) |
1.10-1.70 Nws |
1.10-1.70 Nws |
1.10-1.70 Nws |
Phosphorus (P) |
0.025 |
0.025 |
0.020 |
|
Sulfur (S) |
0.015 |
0.015 |
0.010 |
Chromium (Cr) |
0.30 |
0.30 |
0.30 |
|
Molybdenum (hli) |
0.08 |
0.08 |
0.08 |
Nickel (Ni) |
0.50 |
0.50 |
0.50 |
|
Niobium (Nb) |
0.05 |
0.05 |
0.05 |
Titanium (Ti) |
0.03 |
0.03 |
0.03 |
|
Vanadium (V) |
0.10 |
0.10 |
0.10 |
Nitrogen (N) |
0.012 |
0.012 |
0.012 |
|
Aluminium (Al) |
0.020 |
0.020 |
0.020 |
Copper (Cu) |
0.30 |
0.30 |
0.30 |
P355 series steel boiler phaj txhua yam khoom
|
Qib |
Hom |
Thickness |
Yield zog |
Tensile zog |
Elongation |
|
P355 NH |
Li qub |
Tsawg dua los yog sib npaug li 16 |
355 |
490-630 Nws |
21 |
|
P355 NL1 |
16>kom tsawg dua los yog sib npaug li 40 |
345 |
490-630 Nws |
21 |
|
|
P355 NL 2 |
40>kom tsawg dua los yog sib npaug li 60 |
335 |
490-630 Nws |
21 |
|
|
60>tsawg dua los yog sib npaug li 100 |
315 |
470-610 Nws |
21 |
||
|
100>los tsawg dua los yog sib npaug li 150 |
305 |
460-600 Nws |
21 |
||
|
150>mus tsawg dua los yog sib npaug li 250 |
295 |
450-590 Nws |
21 |
p355NH Boiler Phaj Steel xa khoom raws li txoj cai
P355NH steel phaj tus me nyuam raws li txoj cai yog: normalized kub mechanical dov tempered.
P355NH siab lub nkoj zoo steel thickness flaw nrhiav tau: 1 sojntsuam, 2 sojntsuam, 3 sojntsuam.
P355NH boiler zoo daim hlau thickness extension yuav ua tau: z15\\z25\\z35.

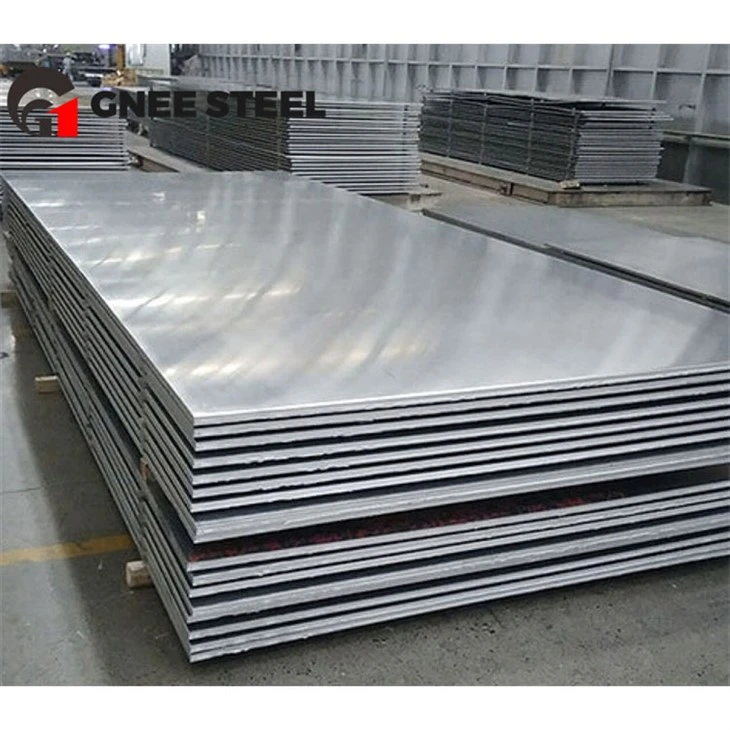

siab nkoj phaj khoom duab
Foto GNEE Group
GNEE pab pawg neeg tuaj xyuas
Peb txhawb cov customization ntawm siab hlab ntsha steel thiab ntau yam kub dov steel phaj khoom. Yog tias koj xav tau, thov hu rau kuv lossis tso koj cov ntaub ntawv tiv tauj.
