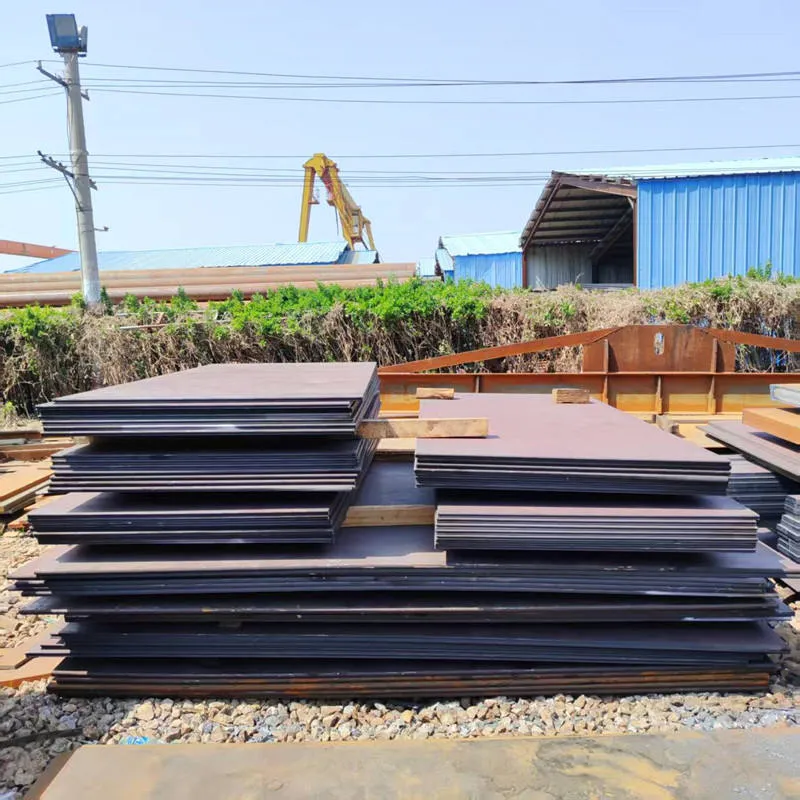

Siab Hlab Hlau Hlau A302 Gr. B
Cov khoom lag luam
ASTM A302 Qib B Siab Ntsig Ntsig Hlau Hlau PhajCov ntaub ntawv tshwj xeeb npog cov Molybdenum alloy, npaj tshwj xeeb ntawm welded boilers thiab lwm tus neeg siab siab steel phaj hauv A302 GR AB, A302 GR C thiab 302 GRD. A302 qib B Steel Phaj yuav tsum nquag muab khoom rau hauv cov xwm txheej uas yog. Daim phiaj yuav txiav txim ib txwm los yog kev ntxhov siab relieved, lossis ob qho tib si.
ASTM A302m Qib B Steel NtawvYog siv dav hauv roj av, kev lag luam tshuaj, hluav taws xob hluav taws xob, boiler reactor siab chav, dej sov, cov yeeb nkab hydrotries, cov yeeb nkab siab.
Cov khoom tsis muaj
ASTM A302 GR. B tshuaj lom neeg muaj pes tsawg leeg
| ASTM A302 Tshuaj Muaj Feem | |||||||
|---|---|---|---|---|---|---|---|
| Qib hlau | Lub caij max (%) | ||||||
| C | Si | Mn | P | S | Mo | Ni | |
| A302 Qib B | 0.20-0.25 | 0.13-0.45 | 1.07-1.62 | 0.035 | 0.035 | 0.41-0.64 | |
ASTM A302 GR. Cov cuab yeej ua txhua yam
| Qib hlau | ASTM A302 Cov Cuab Yeej Kho Tshuab | |||
|---|---|---|---|---|
| Qhov tuab | Pub | Lub tensile | Elongation | |
| lub hli | Min MPa | MPa | Min% | |
| A302 Qib B | 6-50 | 345 MPa | 550-690 MPA | 18% |
| 50-200 | 345 MPa | 550-690 MPA | 15% | |
ASTM A302 GR. B sib npaug ntawm qib steel
| Qib hlau | Yu Laus teb | Lub teb chaws Yelemees | Fabkis | Ltalis | U.K. |
|---|---|---|---|---|---|
| ASTM A302 GR. B | 14CL Mro 45 | 13 CR MO 44 | 15 CD 4.05 | 14 cr mo 46 | 620 gr.27,31 |
Dab tsi yog cov xeeb ceem zoo ntawmA302 Qib B?
Muaj zog thiab muaj sia
Muab lub zog tensile (feem ntau 48-620 MPA / 70-90 Ksi) thiab tawm los ntawm 275 MPa / 40 KSI / 40 KSI / 40 KSI), ua rau nws haum rau kev kub-rau-siab siab.
Molybdenum (mo) hauv nws cov ntawv sau ua kom tsis kam ua rau kom muaj qhov kub thiab rog nyob rau hauv nruab nrab qhov chaw nruab nrab (piv txwv li txog 480℃/ 900℃f).
Zoo heev cuam tshuam
Cov khoom ua pov thawj zoo unch nyuaj thiab cuam tshuam tsis kam ntawm ambient thiab me ntsis v-nees kub (piv txwv li muaj kev pheej hmoo
Weldability thiab Formability
Feem ntau tau tshaj nrog cov txheej txheem vuam (piv txwv li, smaw, gtaw) thaum muab cov khoom siv tshav kub kom zoo thiab tom qab siv hluav taws xob.
Tswj hwm lub sijhawm thaum muaj kev ua haujlwm, tso cai rau kev khoov lossis dov mus rau hauv cov cylindrical lossis spherical duab yam tsis muaj kev ploj ntawm cov khoom siv mechanical.
Corrosion thiab Hydrogen Kuj
Molybdenum txhim kho kom tsis kam mus rau hydrogen-inducts cracking (hic) thiab sulfide kev ntxhov siab corrosion (SSC)
Muaj cov tshuaj oxidation zoo dua li cov hlau ua haujlwm ntawm cov hlau uas nce qib siab, txuas ntxiv lub neej pabcuam hauv cov kev siv hluav taws kub siab.
Tus nqi haum kev siv kub-kub siab
Cov Nyiaj Pov Tseg Alloy (MolanBdenum) los muab cov khoom siv kub kom zoo li cov roj hmab, ua kom sov, thiab cov roj kub hauv lub zog thiab roj / roj sector.
Yog tias koj txaus siab yuav ASTM A30 cov khoom lag luam hlau, tiv tauj peb tam sim no rau tus nqi tshiab lossis koj tuaj yeem xa email rau alloy@gneesteelgroup.com.
Cim npe nrov: Siab Hlab Hlau Hlau A302 Gr. B, Suav teb siab ntshaia Hlau A302 gr. B Cov Chaw Tsim Khoom, Chaw muag khoom, Hoobkas
