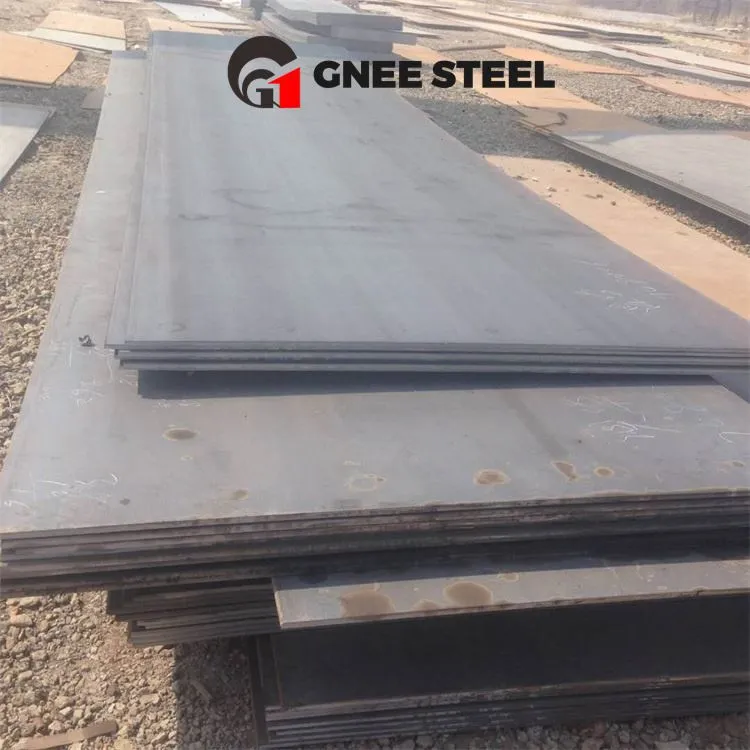

A204 ANLEA MOLLYBEDNUM Hlau Phiaj
ASTM A204 Boiler Steel Phaj yog molybdenum alloy steel phaj, uas yog feem ntau haum rau vuam boilers thiab kub siab cov hlab ntsha. Raws li cov ntsiab lus molybdenum, ASTM A204 thawv hlau Steel tau muab faib ua 3 qib: A, B, C.
ASTM A204 qib ib lub belongs rau alloy steel. Lwm lub npe rau Astm A204 qib ib co hlau siv tsis tau K11820. A204 Qeb Ib Qho Chromium {5 5}} molybdenum alloy steel alloy siv los tsim cov khoom kub siab kub siab.
A204 Qeb Ib Hlau Hlau Boils Tshuaj Muaj Tshuaj
| Teem nqi | Tuab (mm) | Cax | Mn max | P max | S max | Si max | Mo |
| Sa204 qeb A | t tsawg dua los yog sib npaug rau 25 | 0.18 | 0.90 | 0.025 | 0.025 | 0.15-0.40 | 0.45-0.60 |
| 25<> | 0.21 | ||||||
| 50<> | 0.23 | ||||||
| 100<> | 0.25 |
A204 qib ib boiler phaj hlau tshuab
| Cov Cuab Yeej Cuab Yeej Cuab Yeej | A204 Qib A |
| Tensile lub zog, KIS [MPA] | 65-85 [450-585] |
| Pepred lub zog, min, KIS [MPA] | 37 [255] |
| Elongation nyob rau hauv 8 in. [200 hli], min,% | 19 |
| Elongation nyob rau hauv 2 hauv. [50 hli], min,% | 23 |
A204 Qeb Ib Lub Siab Hlua Hlau Hlau Hlau
| Daim Hlau Thickness (hli) |
Qho hnyav (kg / m2) |
|---|---|
| 1.6 | 12.6 |
| 3 | 23.6 |
| 2.5 | 19.6 |
| 2.0 | 15.7 |
| 3.2 | 25.1 |
| 4 | 31.4 |
| 5 | 39.3 |
| 6 | 47.1 |
| 10 | 78.5 |
| 12.5 | 98.1 |
| 8 | 62.8 |
| 20 | 157 |
| 35 | 275 |
| 22.5 | 177 |
| 15 | 118 |
| 30 | 236 |
| 32 | 251 |
| 25 | 196 |
| 40 | 314 |
| 45 | 353 |
Siab Hlis Phaj Khoom Duab
Gnee Pawg Pab Pawg Duab
Gnee Pab Pawg Neeg Siv Khoom Mus Xyuas
Gnee Group Exhibition
Peb cov khoom tau cuam tshuam nruj nruj ua tau zoo kev soj ntsuam thiab tau nruab nrog daim ntawv pov thawj rau kev ua haujlwm. Yog tias koj muaj lus nug txog A204 chav dav dav Molybednum hlau daim hlau, koj tau txais tos txais.
Cim npe nrov: A204 ANLEA MOLYBEDNUM Hlau Daim Hlau, Tuam Tshoj Aroa Molybednum Hlau Daim Hlau Manufacturers, lwm tus neeg, Hoobkas
