Kev Qhia Txog Kev Xaiv SA516 Gr.70 & S275JR/A36 Steel Phaj: Los Ntawm Kev Pabcuam Sour (HIC) mus rau Loj - Daim Ntawv Thov Cov Qauv

1. Navigating High -Performance Pressure Vessel Steels: SA516 Qib 70

Rau kev siv tseem ceeb hauv roj thiab roj, petrochemical, thiab fais fab kev lag luam,ASTM A516 Qib 70yog tus qauv kev lag luam rau nruab nrab mus rau qis dua -kev pabcuam kub. Txawm li cas los xij, qhov tseeb ntawm qhov zoo yog nyob rau hauv lub phaj lub peev xwm los tiv thaiv corrosive ib puag ncig.

• Kev Tshawb Fawb Txog Kev Pabcuam Sour (HIC Testing):
• Nyob rau hauv ib puag ncig uas muaj Hydrogen Sulfide (H2SH2S), hlau yog raug rauHydrogen Induced Cracking (HIC). Peb tshwj xeeb hauv kev muab SA516 Gr.70 daim hlau uas nruj me ntsis ua rawsNACE MR0175 / ISO 15156thiab raug kuaj raws liTIAB SA TM0284.
•

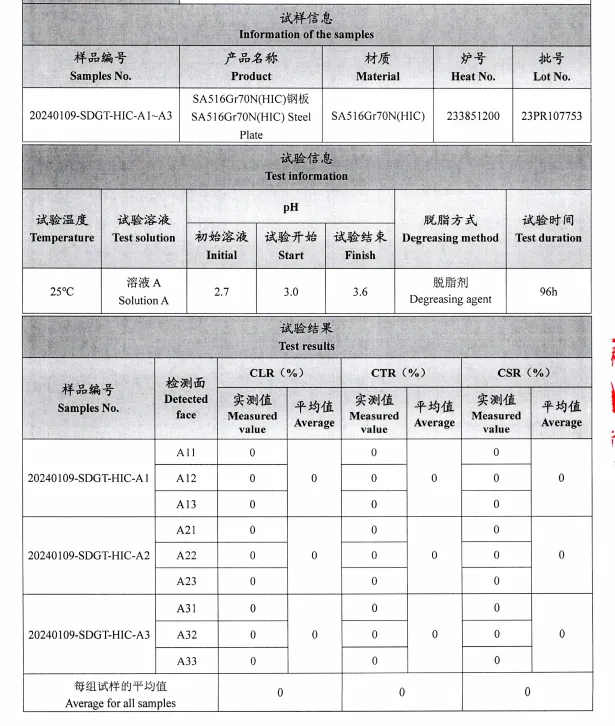

• Performance Metrics:Peb HIC- cov ntawv kuaj xyuas kom ntseeg tau tias ultra- Tsawg Crack Length Ratio (CLR), Crack Thickness Ratio (CTR), thiab Crack Sensitivity Ratio (CSR), muab kev nyab xeeb siab tshaj plaws rau kev tsim cov hlab ntsha siab.

2. Versatility nyob rau hauv Structural Steel: S275JR & ASTM A36

Seb koj qhov project ua raws li European cov qauv (TS EN 10025-2 S275JR) lossis Asmeskas cov qauv (ASTM A36), precision nyob rau hauv cov khoom vaj tse yog tsis yog -negotiable. Peb muab "Dual-Certified" daim hlau uas ua tau raws li ob qho qauv, ua kom yooj yim rau koj cov khoom lag luam tswj hwm thiab ua kom muaj kev ua raws li qhov project thoob ntiaj teb.

3. Loj -Format Peev Xwm: Txo koj cov nqi tsim khoom tsawg

Niaj hnub nimno engineering xav tau cov khoom loj dua los txo cov vuam seams thiab txhim kho kev ncaj ncees.

• Qhov Loj:Peb txhawb ntxiv - daim phiaj dav mus txog3000 hlithiab ntxiv - daim hlau ntev mus txog12000 hli.
• Tus nqi-Ntxiv:Los ntawm kev siv lub tshuab loj loj, peb cov neeg siv khoom txo qis lub sijhawm vuam, NDT (Tsis yog -Kev Ntsuas Kev Ntsuas), thiab cov kev xav tau ntawm kev ua haujlwm thaum sib dhos.

4. Kev Pov Hwm Zoo & Kev Tshawb Fawb Tag Nrho (EN 10204 3.1 & 3.2)

Transparency yog lub hauv paus ntawm kev ntseeg siab. Txhua lub phaj peb xa tuaj nrog cov ntaub ntawv qhia:

• MTC 3.1:Standard zeb xeem daim ntawv pov thawj kom ntseeg tau chemistry thiab mechanical zog.
• MTC 3.2:Rau siab - tej yaam num uas pheej hmoo, peb pabThib peb-Kev Tshuaj Xyuas Ib Tug (TPI)los ntawm cov koom haum thoob ntiaj teb lees paub xws li Lloyd's Register, DNV, ABS, lossis BV los muab EN 10204 3.2 ntawv pov thawj.
• Tag nrho Traceability:Los ntawm tus xov tooj cua sov mus rau daim ntawv xeem kawg, txhua millimeter ntawm koj qhov kev txiav txim yog traceable.

5. Vim li cas koom tes nrog peb?

Kev tuav txoj haujlwm RFQs suav nrog ntau pua tons thiab ntau yam kev qhia tshwj xeeb yog peb lub zog tseem ceeb. Seb nws yog 6 hli structural phaj los yog 10 hli HIC - kuaj lub nkoj siab phaj, peb muab ib tugTotal Supply Chain Solution.

Tiv tauj peb hnub no rau kev sab laj kev tshaj lij ntawm koj qhov project tom ntej.

Kev cia siab rau ntau yam khoom siv thawj zaug, xws li CNC Shearing tshuab, Xovxwm nres tshuab, Straightening tshuab, Roll Bending tshuab, Flat Bar Tshuab, Deburring tshuab thiab lwm yam, GNEE STEEL tuaj yeem muab ntau yam semi-cov khoom thiab cov kev pabcuam dav dav rau cov neeg siv khoom.

GNEE STEEL PROCESSING

CTL & SL

Sib tsoo Polishing

Txiav

Beveling

tsim

Maching

Auto Vuam

Kev kho cua sov

Kev pleev xim

Engineering Services

1.CTL & SL SERVICE (141 SETS)

Tam sim no, GNEE STEEL tau xa ntau yam khoom siv CTL/SL los ntawm ltalis thiab Kauslim Teb thiab tuaj yeem muab cov kev pabcuam CTL / SL los ntawm cov khoom siv txias txias thiab cov pa roj carbon steel rau kub dov stainless hlau thiab carbon hlau nrog rau strips thiab ultra{0}}wide sheet.

CTL FACILITIES
Max Length: 16500mm

Max dav: 2200mm

Max Thickness: 25.4 hli

Max tawm zog: 1500Mpa
SL FACILITY

Max dav: 2200mm

Max Thickness: 18 hli

Max qhov ntau: 31

Max tawm zog: 1200Mpa

2.Kev pab cuam txiav

GNEE STEEL tau xa tawm ntau lub tshuab txiav siab heev los ntawm lub teb chaws Yelemees, Sweden, Amelikas thiab Nyij Pooj, suav nrog plasmas txiav tshuab, dej dav hlau txiav tshuab, laser txiav tshuab, nplaim taws txiav tshuab thiab pom tshuab. Txhawm rau ua kom tau raws li cov neeg siv khoom xav tau ntau haiv neeg, GNEE STEEL kuj tseem siv lub zes ua haujlwm ntau-txoj kev txiav thiab siv ntau lawm los txhim kho kev tsim khoom thiab txuag nqi rau cov neeg siv khoom.

Laser Tej Tshuab

Max Txiav Length: 40,000mm

Max dav: 4,600mm
Max Thickness: 100 hli

nplaim taws txiav tshuab

Max Txiav Length: 40,000mm

Max dav: 8,000mm
Max Thickness: 500 hli

Plasmas Tej Tshuab

Max Txiav Length: 30,000mm

Max dav: 5,000mm
Max Thickness: 100 hli

Dej- dav hlau txiav

Max Txiav Length: 12,000mm

Max dav: 4,010mm
Max Thickness: 250 hli

3. KEV PAB CUAM

Hlau Phaj Roll Bending
Max Rolling Thickness: mus txog 200mm
Qhov siab tshaj plaws: 4200mm

Tsis siv neeg dabtsi yog khoov tshuab -Nias Nres
Max Bending Peev Xwm:3000Ton
Max dabtsi yog khoov Length:15,000 mm

Cov kws tshaj lij hauv kev khoov siab -Lub zog & Hnav-Resistant Steels

Punching Tshuab

Max dav: 3,070mm
Max Thickness: 8 hli

Max siab: 250t

BEEVELING SERVICE

GNEE STEEL beveling platform muaj ntug milling tshuab, ntug planer, nplaim taws / ntshav zawj txiav tshuab, nplaim zawj txiav neeg hlau, desktop chamfering tshuab, gantry planer thiab lwm yam khoom siv siab heev los muab cov neeg siv khoom nrog cov kev pabcuam prefabrication, kev ua haujlwm txhua hnub ntawm V- hom, Y- hom, X{2} hom, U{2} thiab cov txheej txheem tom ntej xws li vuam thiab sib dhos ntawm cov khoom.

Milling:
Max Txiav Length: 18,000mm

Max dav: 4500mm
Max Thickness: 120 hli

Beveling:
Max Length: 16,000mm

Max Thickness: 80 hli

MACHINING SERVICE

GNEE STEEL muaj CNC Portal -hom tho txawv thiab Milling tshuab, CNC pem teb- hom tho txawv thiab Milling tshuab, Vertical Precision 5-axis Milling Tshuab, Portal-hom Planer, Vertical Lathe, Cylindical Sib Tsoo tshuab, Hydraulic Planer thiab CNC Tshuab dhos thiab tuaj yeem muab cov khoom siv zoo rau cov neeg siv khoom.

Gantry Hom tho txawv & Milling Maching Center

Max Ntev: 48000mm

Max dav: 12500mm
Max Qhov siab: 8000mm

Max qhov siab: 10500mm

Sib sib zog nqus- qhov Drilling Equipment
Max Driling Qhov tob: 1,100mm
Max Qhov Loj: φ80mm
Max Diameter: φ4,500mm

MMulti-Qhov Drilling Equipment

Max Length: 13,000mm
Max dav: 10,000mm
Max Qhov Loj: φ105mm
Max Drilling qhov tob: 250mm

Pem teb tho txawv Thiab Milling Tshuab
Max Length: 24,000mm
Max Qhov siab: 8,000mm
Loj: 9x5m

Tshuab dhos ntsug

Max Qhov siab: 6,000mm

Max Diameter: φ22,00mm

Automated Ntug Milling Tshuab

Automated Edge Milling Tshuab yog cov khoom lag luam loj hauv -cov khoom siv milling. Nws feem ntau yog siv rau kev npaj vuam zawj (beveling) ntawm loj - daim hlau ua los ntawm stainless hlau, carbon hlau, thiab qib steel tshwj xeeb. Nws tuaj yeem ua cov phaj nrog qhov siab tshaj plaws thickness txog li 90 hli, qhov ntev ntawm 16 meters, thiab qhov dav ntawm 4 meters.

Nws yog nruab nrog dual milling units thiab lub siab tsis siv neeg milling cutter lub taub hau hloov qhov system, ua kom automated 4-ntug beveling. Nws qhov tshwj xeeb tshaj plaws yog cov cuab yeej siv hluav taws xob siv thaum milling wavy daim hlau thiab cov khoom tsis sib xws, uas ua kom muaj qhov sib xws ntawm qhov zawj tom qab milling.

Siv tshwj xeeb tsim milling cutter hau, nws muaj peev xwm ua tau heev nyuaj thiab complex zawj profiles nyob rau hauv ib tug pass.

Khoom siv:Cov pa roj carbon monoxide steel, siab nkoj steel, hnav-cov hlau tsis muaj zog, siab- lub zog steel, stainless hlau, nickel{2}}raws li alloys, thiab lwm yam.
Dav:1200 - 4200 hli
Ntev:5800 - 16000 hli
Thickness:5 - 90 hli
Qhov hnyav:Txog li 35 tons

Lub tshuab ntug milling no yog lub ntiaj teb premier automated bevel milling khoom. Nrog nws cov qauv tsim zoo heev thiab cov ntaub ntawv siab heev algorithms, nws ua tiav tag nrho automation los ntawm kev kuaj xyuas phaj mus rau cov txheej txheem milling tiag tiag, txhim kho kev ua haujlwm zoo thaum lav qhov siab.

• Kev ua kom raug

Ntev raug:± 1mm ​​thaum L <10m; ± 2 hli thaum L> 10m;

Dav raug:± 1 hli;

Diagonal raug:± 2 hli;

Hauv paus ntsej muag raug (blunt ntug):± 1mm ​​rau Y-grooves; +0.5mm rau X-grooves.

• Kev Ua Haujlwm Zoo

Kev ua tau zoo yog ntau tshaj 10 npaug ntawm cov khoom siv ntug milling lossis ntug kev npaj.

Kev kho cua sov

Thaum tshav kub kub kho rauv
Qhov Loj: 36x12x13.5m
Max ntsuas kub: 1100 degree
Max loading peev: 800t

Kev kho cua sov ntawm cov hlab ntsha
Kev kho cua sov ntawm cov khoom siv mining
Kev kho cua sov ntawm Tube Sheet
Kev kho cua sov ntawm Lub Hwj Chim Lub Taub Hau

GNEE STEEL tam sim no koom nrogKev yuav khoom theem ntawm 100,000m³ tag nrho ntim ammonia cia tank project, muab siab - zoo steel phaj rau cov khoom tseem ceeb tank. Vim lub corrosive xwm ntawm ammonia thiab kev pheej hmoo ntawmAmmonia Stress Corrosion Cracking (SCC), qhov project yuav tsum nruj metallurgical tswj cov ntaub ntawv raws liEN 10028-3 tus qauv.

Ib qho tseem ceeb tshaj plaws kev xav tau ntawm qhov project no yog qhovnruj txwv ntawm qhov tseeb Yield Strength (Re)rau tag nrho cov ntaub ntawv qib NL2. Txhawm rau tiv thaiv SCC kev pheej hmoo hauv thaj chaw ammonia cia, covyield zog yuav tsum tsis pub tshaj 390 MPa, tsis hais tus nqi nominal teev nyob rau hauv tus qauv lossis phaj thickness ntau yam. Qhov kev xav tau no ua rau muaj kev xav tau ntau dua ntawm kev tswj cov txheej txheem steelmaking, kev kho cua sov kom ruaj khov, thiab kuaj cov khoom siv.

Raw siab -lub zog steel daim hlau npaj rau 100,000 m³ puv ntim ammonia cia tank ntau lawm

Cov ntaub ntawv ntawm qhov project thiab kev xav tau

Qhov project feem ntau yog sivP355NL2 thiab P275NL2 normalized siab lub nkoj steel daim hlau, uas yog dav siv nyob rau hauv qis - kub cia tank vim lawv zoo heev toughness thiab weldability.

Cov kev qhia tshwj xeeb tseem ceeb suav nrog:

• Cov ntaub ntawv qib:P355NL2 thiab P275NL2 (Normalized)
• Yield zog:Standard yam tsawg kawg nkaus / Maximum txwv rau390 MPa ua
• Hardness:Tsawg dua lossis sib npaug rau 225 HBW hauv cov khoom siv hauv paus
• Kev ntsuam xyuas cuam tshuam:Charpy-V ntsuas ntsuas ntawm-50 degree, yam tsawg kawg 27J
• Ntawv pov thawj:TS EN 102043.1 daim ntawv pov thawj, nrog yeem3.2 ntawv pov thawj

Cov kev cai nruj no xyuas kom meej tias cov hlau phaj tswj cov khoom ruaj khov thiab ua haujlwm siab rau ammonia-ua rau muaj kev ntxhov siab corrosion thaum lub sijhawm ua haujlwm ntev-.

Precision dov thiab tsim cov hlau phaj rau hauv cov ntu nkhaus rau 100,000 m³ ammonia cia tank.

Project Plate Quantity thiab Thickness Distribution

Tag nrho cov hlau xav tau rau qhov project no ammonia cia tank yog ob peb txhiab tons, feem ntau faib thoob plaws ntau lub tank:

P355NL2 - Sab hauv & Outer Tank Plhaub daim hlau

• Cov chav kawm qis qis:50 hli thickness - kwv yees li . 2,000 tons
• Cov chav kawm Middle plhaub:25 hli thickness – kwv yees li . 1,400 tons
• Cov chav kawm Upper shell:10 hli thickness – approx . 500 tons

P275NL2 - Tank hauv qab phaj

• Thickness:10–15 mm – approx . 750 tons

P275NL2 - Ncua lub ru tsev

• Thickness:5–8 mm – approx . 180 tons

S275JR - Lub Tsev Sab Nraud (Ambient Structure)

• Thickness:10 mm – approx . 450 tons

Txhawm rau txhim kho tank fabrication efficiency thiab txo cov voj voog ncig, qhov project kuj xav taudav hlau daim hlautxhawm rau txo qis cov pob qij txha welding, uas yuav pab txo qis kev pheej hmoo ntawm SCC hauv kev pabcuam ammonia.

Tsim steel ntu qhwv thiab racked rau kev tiv thaiv, npaj rau 100,000 m³ ammonia cia tank sib dhos.

GNEE STEEL muab siab -precision steel phaj dov thiab lub tog raj kheej tsim kev daws teeb meem rau lub tank manufacturers thoob ntiaj teb.Xa peb koj cov phaj specifications los yog fabrication drawings rau ib tug ceev hais.
