Q295nh Kub Rolled Corten Steel Phaj
Q295NH yog tus suavHuab Cua Hlau PhajTxheem, uas muaj zoo corrosion tsis kam. Qhov tsawg kawg nkaus los lub zog ntawm Q295NHcorten steel khoomyog 295 MPa, thiab lub zog tensile yog nruab nrab ntawm 430-560Mpa. Q295NHCorten Huab Cua HlauFeem ntau yog siv nyob rau hauv kev tsim cov tsheb thauj khoom, ntim khoom, vaj tse, cov tsev thiab qee qhov kev teeb tsa siv los tiv thaiv cov tshuab hluav taws xob hauv plab corrosion.
Gnee yog tus kws tshaj lij nyob rau hauv cov ntaub ntawv raw hlau, tus kws tshaj lij kev ua haujlwm thiab cov neeg faib khoom ntawm Q295NHcorten steel, Peb muaj 16 xyoo ntawm kev paub hauv daim teb no. Peb muab cov tshuaj tshem tawm kom puas, txiav, xuas nrig ntaus, khoov, vuam thiab lwm yam kev pabcuam. Rau Q295NHCorten Cov Khoom SivNqe, thov koj xav tiv tauj peb los ntawm email lossis xov tooj. Peb yuav teb koj sai li sai tau.
Q295NH CORTEN STEEL SHEET NEEG HLAU COV NTAUB NTAWV NOV
|
Teem nqi |
C |
Si |
Mn |
P |
S |
CU |
Cr |
Ni |
|
Q295NH |
0.15 |
0.10-0.50 |
0.30-1.0 |
0.03 |
0.03 |
0.25-0.55 |
0.40-0.80 |
0.65 |
Q295NH Corten Steel SHATS Cov Vaj Tse
| Tuab (mm) | ||||
| Q295NH | Tsawg dua los yog sib luag rau 16 | >16 tsawg dua los yog sib npaug rau 40 | >40 tsawg dua los yog sib npaug rau 60 | >60 |
| Yield zog (loj dua los yog sib npaug rau MPA) | 295 | 285 | 275 | 255 |
| Tensile lub zog (mpa) | 430-560 | |||
Q295NH Corten Cov Ntawv Loj Cov Ntawv Loj
| Corten Steel gauge dav thiab ntev | LUJ LBS. ib sq. Ft. | Kev kwv yees qhov hnyav rau ib daim ntawv |
|---|---|---|
| 7 ga. (.1874 ") x 48 x 120 | 7.871 | 314.8 |
| 10 ga. (.135 ") x 48 x 120 | 5.670 | 226.8 |
| 11 ga. (.120 ") x 36 x 120 | 5.040 | 151.2 |
| 11 ga. (.120 ") x 48 x 96 | 5.040 | 161.3 |
| 11 ga. (.120 ") x 48 x 120 | 5.040 | 201.6 |
| 11 ga. (.120 ") x 48 x 144 | 5.040 | 241.9 |
| 11 ga. (.120 ") X 60 x 96 | 5.040 | 252.0 |
| 12 ga. (.105 ") x 36 x 120 | 4.410 | 132.3 |
| 12 ga. (.105 ") x 48 x 120 | 4.410 | 176.4 |
| 12 ga. (.105 ") x 60 x 120 | 4.410 | 220.5 |
| 14 ga. (.075 ") x 36 x 120 | 3.150 | 94.50 |
| 14 ga. (.075 ") x 48 x 120 | 3.150 | 126.0 |
| 16 ga. (.060 ") x 36 x 120 | 2.520 | 75.60 |
| 16 ga. (.060 ") x 48 x 96 | 2.520 | 80.64 |
| 16 ga. (.060 ") x 48 x 120 | 2.520 | 100.8 |
| 16 ga. (.060 ") x 60 x 120 | 2.520 | 126.0 |
| 18 ga. (.048 ") x 36 x 120 | 2.016 | 60.48 |

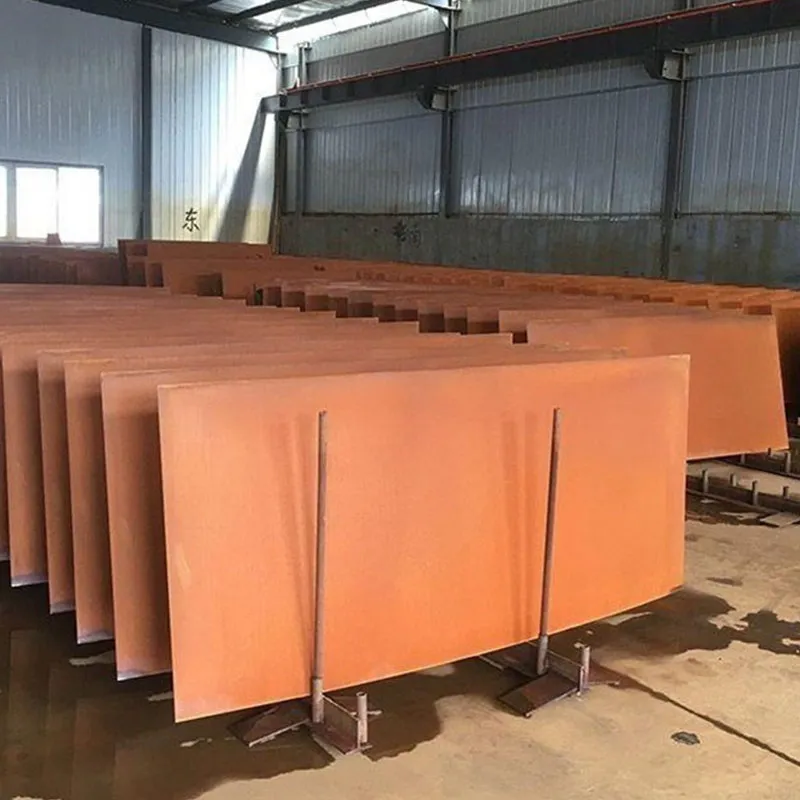

Corten Hlau Phaj Khoom Duab
Gnee Pawg Pab Pawg Duab
Gnee Pab Pawg Neeg Siv Khoom Mus Xyuas
Gnee Group Exhibition
Peb cov khoom tau cuam tshuam nruj nruj ua tau zoo kev soj ntsuam thiab tau nruab nrog daim ntawv pov thawj rau kev ua haujlwm. Yog tias koj muaj lus nug txog Q295NH kub dov corten steel phaj, koj tau txais tos txais.
Cim npe nrov: Q295NH Kub Rolled Corten Steel Phaj, Tuam Tshoj Q295NH MUAB KUB ROLLED CORTEN steel phaj manufacturers, lwm tus neeg, Hoobkas
