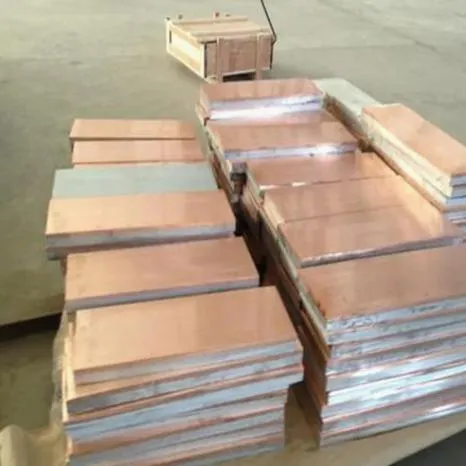

S32205+Q345C Clad steel phaj Chemical Composition thiab Mechanical Property
| Kev piav qhia | S32205 |
|---|---|
| Pov thawj Stress 0.2% (MPa) | 450 |
| Tensile zog (MPa) | 620 |
| Elongation A5 (%) | 20 |
| Hardness | ib: 293 HRB: 96 (raws li Rockwell C Scale) |
| UNS No | S32205 |
| EN | 1.4462 |
| AISI | 2205 |
| Cov pa roj carbon (C) | 0.030 |
| Silicon (Si) | 1.00 |
| Manganese (Mn) | 2.00 |
| Phosphorus (P) | 0.030 |
| Sulfur (S) | 0.020 |
| Chromium (Cr) | 22.0/23.0 |
| Molybdenum (hli) | 3.0/3.5 |
| Nickel (Ni) | 4.5/6.5 |
| Nitrogen (N) | 0.14/0.20 |
|
Khoom siv |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Cu: |
V |
|
Q345C |
0.12-0.2 |
0.20-0.6 |
1.00-1.6 |
Tsawg dua lossis sib npaug li 0.035 |
Tsawg dua lossis sib npaug li 0.035 |
Tsawg dua lossis sib npaug li 0.3 |
Tsawg dua lossis sib npaug li 0.3 |
Tsawg dua los yog sib npaug li 0.2 |
0.02-0.15 |
MECHANICAL PROPERTY OF Q345 SERIES STEEL
|
Khoom siv |
Tensile zog, Mpa |
Yield zog, Mpa |
Elongation |
|
Q345C |
490-675 |
Ntau dua lossis sib npaug rau 345 |
Ntau dua lossis sib npaug 22 |
S32205+Q345C Clad steel phaj Daim ntawv thov
S32205+Q345C Clad steel daim hlau yog siv rau hauv Kev Tsim Kho Kev Siv Hluav Taws Xob, Kev Tsim Kho Kev Loj thiab lwm yam kev tsim kho engineering.
S32205+Q345C Clad steel phaj Lwm Lub Npe
S32205+Q345C Clad steel phaj, S32205 steel phaj, Q345C steel phaj
Qhov xwm txheej ntxiv
UT (Ultrasonic kuaj), AR (Raws li Kub Rolled nkaus xwb), TMCP (Thermal Mechanical Control Processing), N (Normalized), Q + T (Quenched thiab Tempered), Z Direction Test (Z15, Z25, Z35), Charpy V-Notch Impact Test, Third Party Test (xws li Shoting thiab Painting Testing),
Rau cov hlab ntsha siab huv hauv kev lag luam tshuaj / khoom noj khoom haus (xws li, cov tshuaj tsis muaj menyuam yaus, cov khoom siv siv mis), peb muab Q345B+304L Clad steel lossis S32205+Q345C Clad steel uas ua tau raws li TSG 21 thiab zaub mov- cov qauv qib. Yog tias koj xav paub txog qhov yuav tsum tau ua ntawm qhov roughness, weldability nrog huv fittings, los yog xam cov nqi ua rau kev kho cov kab noj hniav, xa ib qho kev nug rau kev sib tham thiab cov ntaub ntawv pov thawj.
